Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - assembly mountings

This assembly overview covers the Volkswagen Golf Mk7 1.4 TSI engine mountings: a bolt with specified tightening sequence, the engine support, and the engine mounting with support arm.

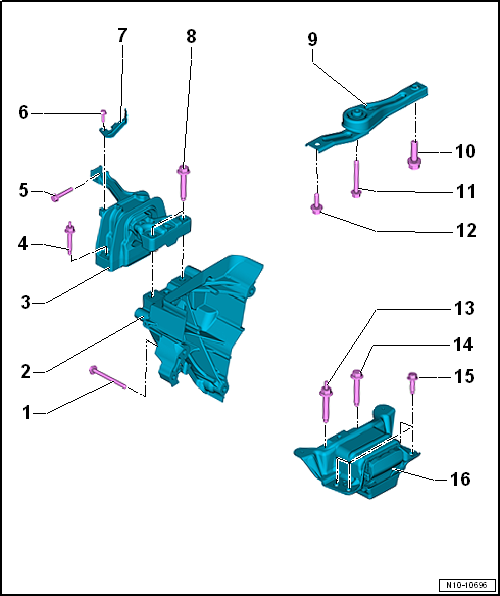

Assembly overview - assembly mountings

1 -  Bolt
Renew
Tightening sequence → Fig.
2 -  Engine support
Specified torque and tightening sequence → Fig.
3 -  Engine mounting
With support arm.
Removing and installing → Chapter
4 -  Bolt
Renew
40 Nm + 90°
5 -  Bolt
Renew
20 Nm + 90°
6 -  Bolt
8 Nm
7 -  Bracket
8 -  Bolt
Renew
60 Nm + 90°
9 -  Pendulum support
Removing and installing → Chapter
10 -  Bolt
Renew
Specified torque and tightening sequence → Fig.
11 -  Bolt
Renew
Specified torque and tightening sequence → Fig.
12 -  Bolts
Renew
Specified torque and tightening sequence → Fig.
13 -  Bolt
Renew
60 Nm + 90°
14 -  Bolt
Renew
60 Nm + 90°
15 -  Bolt
Renew
50 Nm + 90°
16 -  Gearbox mounting
With support arm.
Removing and installing → Chapter

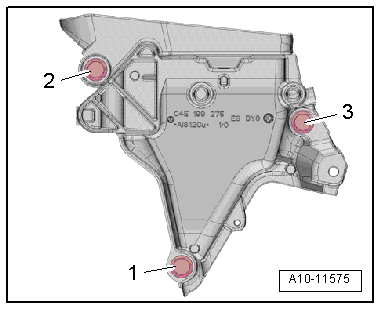

Engine support - specified torque and installation sequence
  Note
Renew bolts that are tightened with specified tightening angle.
–  Tighten bolts in stages in the sequence shown:


Assembly overview - assembly mountings

Stage Bolts Specified torque/ additional specified angle
1 -1 … 3- 7 Nm
2 -1 … 3- 40 Nm
3 -1 … 3- Turn 90° further


Install pendulum support
  Note
Renew bolts tightened through an additional specified angle.
–  Tighten bolts in stages in the sequence shown:
  Assembly overview - assembly mountings
Stage Bolts Specified torque/ additional specified angle
1 -2, 3- 50 Nm
2 -1- 130 Nm
3 -1 … 3- Turn 90° further
