Volkswagen Golf Mk7 Owners Manual: Dimensions

Fig. 21 gives the full set of Volkswagen Golf Mk7 body dimensions — length, width, height, wheelbase and track — for the basic German-market model. The manual is explicit that actual figures can shift with different tyre and wheel sizes, additional equipment, model versions, retrofitted accessories or special-bodied vehicles, so treat this table as a reference baseline rather than an exact match for every trim.

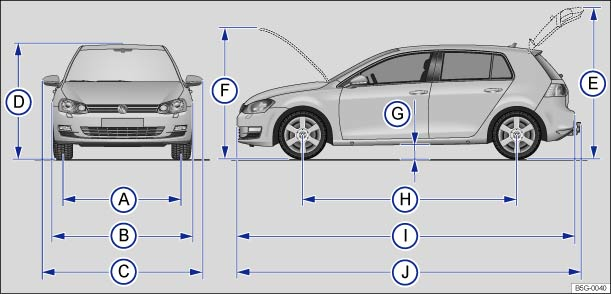

Fig. 21 Dimensions

First read and observe the introductory information and safety warnings 

The data in the table apply to the most basic German model.

The specified values can vary due to different tyre and wheel sizes, if additional equipment is fitted, for different model versions, for retrofitted accessories, and for special vehicles. They can also vary in vehicles that have been manufactured for other countries.

Key for  : Value
Ⓐ Front track 1,549 mm
Rear track 1,520 mm
Ⓑ Width (2-door) 1,790 mm
Width (4-door) 1,799 mm
Ⓒ Width (from one exterior mirror to the other) 2,027 mm
Ⓓ Height to the upper edge of the roof at kerb weighta) 1,452 mm
Height at kerb weighta) with navigation aerial 1,476 mm
Ⓔ Height with open tailgate at kerb weighta) 2,006 mm
Ⓕ Height with open bonnet and kerb weighta) 1,763 mm
Ⓖ Ground clearance in road-ready stateb) between the axles 142 mm
Ⓗ Wheelbase 2,637 mm
Ⓘ Length (from bumper to bumper) 4,255 mm
Ⓙ Length with fitted towing bracket (when factory-fitted) 4,349 mm
  Turning circle diameter 10.9 m

NOTICE

  • Take care when driving in car parks with protruding kerbstones or bollards. Objects that protrude from the ground can damage the bumper and other components when parking the vehicle.
  • Drive carefully through dips in the road, over driveways, ramps, kerbstones and other objects. Low-lying vehicle components such as the bumper, spoiler and parts of the running gear, engine or exhaust system could be damaged.

a) Kerb weight without driver, without payload.

b) Kerb weight with driver (75 kg) and service fluids.

    Questions & answers

    Dimensions — Volkswagen Golf Mk7

    What are the exterior dimensions of the Volkswagen Golf Mk7?
    The Golf Mk7 is approximately 4,255 mm long, 1,799 mm wide (4-door) and 1,452 mm tall. Front track is 1,549 mm and rear track is 1,520 mm, though exact values can vary with wheel and tyre size.
    Does the Golf Mk7 width include the door mirrors?
    The manual gives two width figures: body width (mirror to mirror is not included in the standard measurement) and width from one exterior mirror to the other, which is the wider figure needed for tight spaces.
    Can the Golf Mk7 dimensions vary between models?
    Yes. Different tyre and wheel sizes, additional equipment, model versions (2-door vs 4-door), retrofitted accessories and country-specific builds can all cause slight variations from the published figures.
    What is the Golf Mk7 wheelbase?
    The wheelbase (distance between front and rear axle centres) is 2,637 mm for the standard Golf Mk7 hatchback. This is one of the key dimensions shown in the diagram.
