Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing rear belt buckle

This page covers removing the Volkswagen Golf Mk7 rear belt buckle — remove the bench seat first; on the right side, the buckle is part of the rear centre seat belt and includes a belt switch connector to detach.

Removing
–  Remove bench seat / single seats → Chapter.

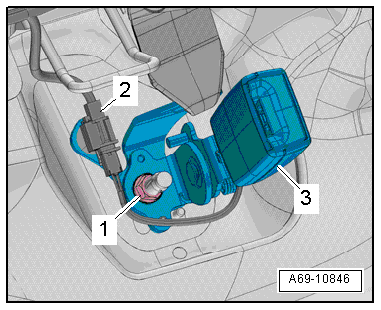

Right side: belt buckle with belt end fitting
  Note
The belt buckle with belt end fitting is part of the rear centre seat belt.

–  Detach electrical connector -2- for belt switch.
–  Unscrew nut -1-.
–  Remove belt buckle -3- from belt end fitting.


Removing and installing rear belt buckle

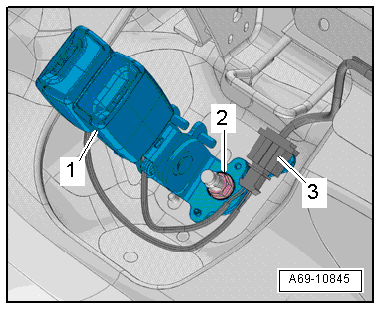

Left side: double belt buckle
–  Detach electrical connector -3- for belt switch.
–  Unscrew nut -2-.
–  Remove double belt buckle -1-.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - rear belt buckle“


Removing and installing rear belt buckle
