- Fitting location: right A-pillar
- To separate connections, release bellows at pillar
| 2 - |
Onboard supply control unit -J519- |
- Location: Under dash panel on driver side
- Removing
→ Electrical system; Rep. gr.97
| 3 - |
Front passenger door control unit -J387- |
- Installed in door separated from window regulator motor.
| 4 - |
Front right door lock |
- Door lock is secured to inner part of door
- Electric central locking is integrated into door lock
- Removing
→ Chapter
- Fitting location: right B-pillar.
- To separate connections, release bellows at pillar
| 6 - |
Driver door control unit -J386- |
- Installed in door separated from window regulator motor
- Door lock is secured to inner part of door
- Electric central locking is integrated into door lock
- Removing
→ Chapter
| 8 - |
Coupling station, right side of rear lid |
- Location: behind C-pillar trim
- Remove and install
→ General body repairs, interior; Rep. gr.70.
| 9 - |
Release element with button |
- Location: Bolted to rear lid.
- Removing
→ Chapter
- Location: bolted to rear lid
- Removing
→ Chapter
| 11 - |
Coupling station, left side of rear lid |
- Location: behind C-pillar trim
- Remove and install
→ General body repairs, interior; Rep. gr.70
- Door lock is secured to inner part of door
- Electric central locking is integrated into door lock
- Removing
→ Chapter
| 13 - |
Rear left door control unit -J388- |
- Installed in door separated from window regulator motor
- Location: left B-pillar
- To separate connections, release bellows at pillar.
| 15 - |
Front left door lock |
- Door lock is secured to inner part of door
- Electric central locking is integrated into door lock
- Removing
→ Chapter
| 16 - |
Driver door control unit -J386- |
- Installed in door separated from window regulator motor.
| 17 - |
Central switch for window regulators |
- Location: installed in door panel
- Remove and install central switch for window regulator
→ Electrical system; Rep. gr.96
| 18 - |
Button for central closing |
- Location: installed in door panel
- Remove and install button for central closing
→ Electrical system; Rep. gr.96.
- Location: left A-pillar
- To separate connections, release bellows at pillar.
- Removing
→ Electrical system; Rep. gr.96.
| 21 - |
Bonnet contact switch -F266- |
- Contact switch for anti-theft alarm
- Location: on bonnet lock
- Removing
→ Chapter
Questions & answers

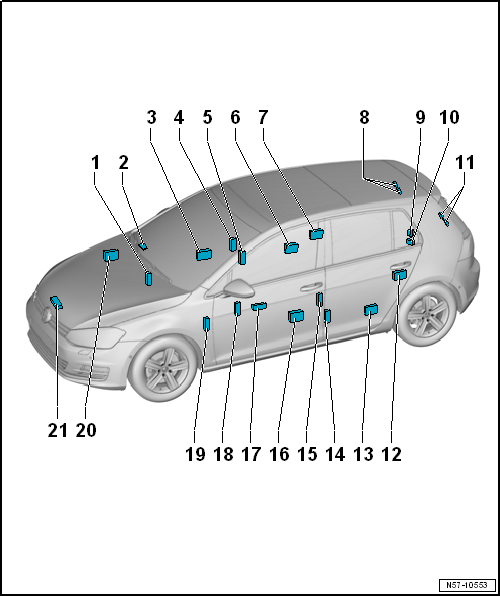

Overview of fitting locations – central locking — Volkswagen Golf Mk7
