 Note
| If only the fresh air blower -V2- is defective, remove and
install fresh air blower control unit -J126-
→ Chapter. |
| Fresh air blower -V2- is accessible from footwell on front
passenger side. |
| – |
Remove baffle plate
→ Chapter. |
|
|
|
| – |

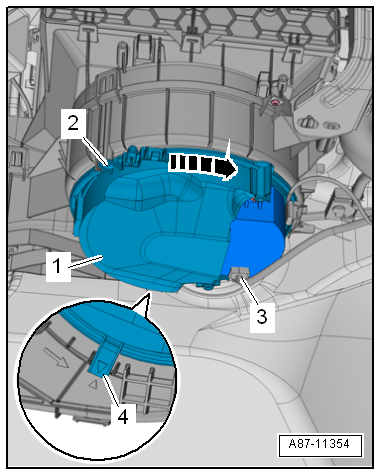

Disconnect electrical connector -3-. |
| – |
If fitted, unscrew bolt -2-. |
| – |
Lift the locking lug -4- and
turn the fresh air blower -1-
clockwise -arrow-. |
| – |
Pull the fresh air blower out of the bottom part of the
evaporator housing. |
Improper handling causes damage to the fresh air blower.Imbalance and
disturbances may occur during operation.Avoid applying excessive
pressure to the fan wheel.Never change position of the balancing weights
on fan wheel.
| Install in reverse order. |
| – |
Read event memory, and clear any entries displayed vehicle
diagnostic tester in “Guided fault finding” mode. |
| – |
As a final step, check operation of fresh air blower -V2-. |
| → Chapter „Assembly overview - add-on parts of heater and air
conditioning unit and of air intake box“ |
|
|
|
Questions & answers
Removing and installing fresh air blower -V2-, LHD vehicles — Volkswagen Golf Mk7
How do I remove the Golf Mk7 fresh air blower -V2- (LHD)?
If only the blower motor is defective, remove the control unit -J126- first. Then unbolt and remove the blower from the air intake housing.
Special tools and workshop equipment
required
Commercially available vacuum cleaner
Cover plate -T10532-
...
Note
If only the fresh air blower -V2- is defective, remove and
install fresh air blower control unit -J126-
→ Chapter.
...
