| Special tools and workshop equipment
required |
|
|
|
| – |
Fold down rear seat backrests. |
| – |
Turn fasteners on left and right of luggage compartment
floor by 90° to release them, and remove luggage compartment
floor towards rear from vehicle. |
| – |
Remove support for luggage compartment floor upwards
→ Item. |
| – |
Pull side wall -3- on left and
right upwards out of luggage compartment side trim, and remove
it. |
|
|
Torque wrench -V.A.G 1783 |
| – |

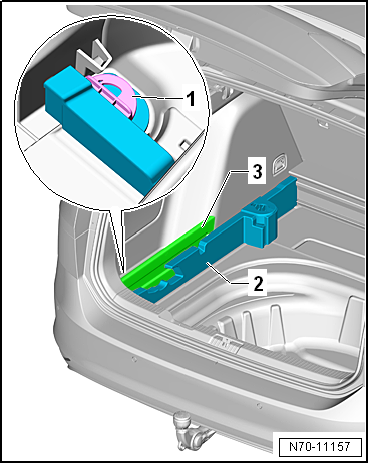

Turn push-on fastener -1- on
left and right anti-clockwise by 90°, and remove it upwards. |
| – |
Remove luggage compartment floor lining
-2- upwards on left and right. |
|
|
|
| – |

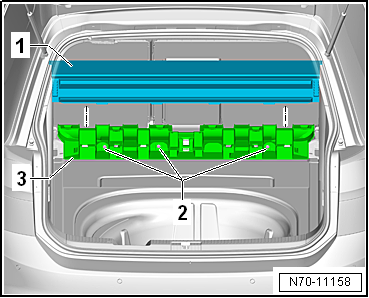

Unclip centre luggage compartment floor lining
-1- upwards from carrier
-3-. |
| – |
Remove carrier -3- for centre
luggage compartment floor lining -1-
towards rear. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - luggage compartment floor“ |
|
|
|
Questions & answers
Removing and installing support for luggage compartment floor, estate — Volkswagen Golf Mk7
How do I remove the Golf Mk7 estate boot floor support?
Fold rear backrests, turn fasteners on left and right, and remove the support panel.
Note
Removal and installation are described for the left vehicle
side. Follow same instructions for the right side as
appropriate.
...
Special tools and workshop equipment
required
Wedges -T10383
Removing
...
