 Note
| Removal and installation are described only for the right
door handle. The right side is similar. |
|
|
|
| General information and work instructions for the door handle
keyless entry system
→ Electrical system; Rep. gr.94 |
| – |
Pull door handle -1- towards rear
slightly -arrow a- until it comes out of
support for mounting bracket. |
| – |
Swivel door handle in direction of -arrow b-. |
| – |
Pull door handle out of mounting bracket
-1--arrow c-. |
| General information and work instructions for the door handle
keyless entry system
→ Electrical system; Rep. gr.94 |
| – |

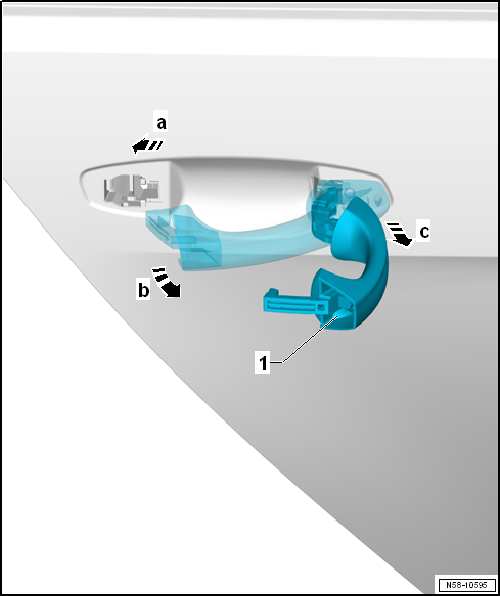

Seat door handle -1- in mounting
bracket, whereby handle must be at right angles to door
-arrow a-. |
| – |
Swing door handle -1- into door
- arrow b-. |
| – |
Slide door handle forcibly forwards -arrow c-
into support for mounting bracket. |
| Installing cover cap
→ Chapter |
| l |
It is essential that a functional check is then performed with the
door open. |
Questions & answers
Removing and installing door handle — Volkswagen Golf Mk7
How do I remove the Golf Mk7 rear door handle?
Remove the door trim, disconnect Bowden cables and any Keyless Entry wiring from behind, release mounting clips and pull the handle out.
