Note
| Removal and installation are described for the left vehicle side.
Follow same instructions for the right side as appropriate. |
| Bowden cable on backrest end |
| – |
Remove rear seat backrest
→ Chapter. |
| – |
Detach cover and padding only in area of Bowden cable
-1-
→ Chapter. |
| – |

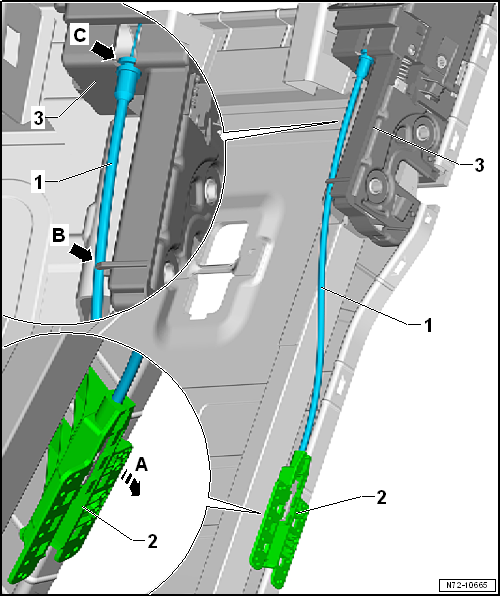

Unclip connecting piece -2- with Bowden
cable -1- from backrest frame
-arrow A-. |
| – |
Unclip Bowden cable -1- from retainer
-arrow B-. |
| – |
Push Bowden cable -1- out of cable
support bracket -arrow C- of locking
mechanism for rear seat backrest -3-. |
| – |
Detach pin of Bowden cable -1- from
release mechanism for rear seat backrest -3-,
and remove Bowden cable -1-. |
| Bowden cable on vehicle end |
| – |
Remove luggage compartment side trim
→ Chapter. |
| – |
Remove remote release operating mechanism for seat backrest
→ Chapter. |
| – |

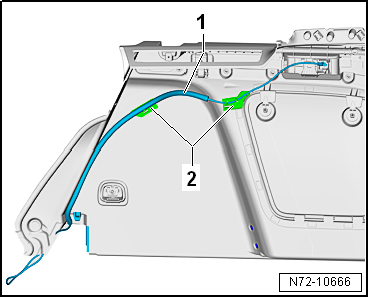

Unclip Bowden cable -1- from
retainers -2- on luggage
compartment side trim, and remove it. |
| Installation is carried out in reverse order. |
|
|
|
