Volkswagen Golf Mk7 Service & Repair Manual: Specified torques for gearbox

This page gives the exact bolt torques for the Volkswagen Golf Mk7 1.4-litre petrol/natural gas engine gearbox mounting: M12×70 and M12×50 bolts at 80 Nm, M10×55 at 40 Nm, with dowel sleeves for centring.

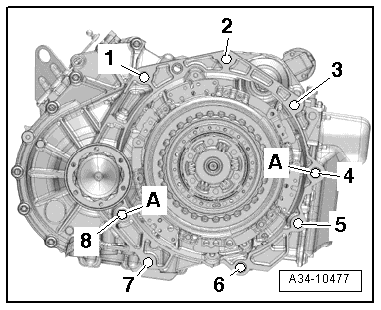

petrol engine, 1.4 l natural gas engine:


Specified torques for gearbox

Item Bolt Nm
1, 5, 9 M12x70 80
2, 4 M12x50 80
3 1),2) M12x165 80
6, 7, 8 M10x55 40
A Dowel sleeves for centring
1) Also secures starter
2) Centre hex stud

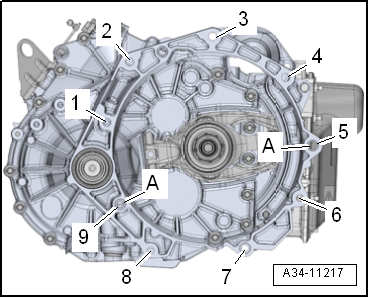

Gearbox to 1.4 l, 1.6 l and 2.0 l diesel engine, 1.8 l petrol engine:


Specified torques for gearbox

Item Bolt Nm
1, 33) M12x55 80
2 1),2) M12x150 80
4, 8 M12x65 80
5, 6, 7 M10x55 40
A Dowel sleeves for centring
1) Also secures starter
2) Centre hex stud
3) With insert tool T10179 or T10509: »65 Nm«


Component Specified torque
Wiring retainer to gearbox cover. 10 Nm
Flange shaft to gearbox 30 Nm

Specified torques for assembly mountings → Chapter
