Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing underbody covers – petrol/diesel

This page covers removing the petrol/diesel Volkswagen Golf Mk7 underbody covers — noting the procedure may vary by engine — starting with the centre underbody panels, then releasing the retaining tab to pull the front cover backward.

Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

Removing and installing underbody covers – petrol/diesel

Removing
–  Remove centre underbody panels → Chapter.

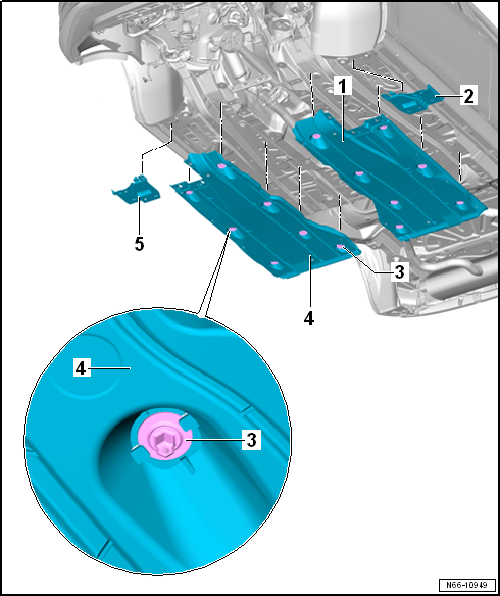

–  Release retaining tab and pull out front cover -2- or -5- in direction of travel backwards off catches.
–  Unscrew nuts -3-.
–  Remove underbody panel -1- or -4-.
Installing
Install in the reverse order of removal observing the following:
Specified torque
l  Nuts → Item
