| During production, a sealant is applied to the door inner
seals, which are then placed on the door flange and rolled on. |
 Note
- When removing the seal, the sealant is distributed across the
inside of the seal. The sides are bent upwards slightly when this is
being done. If the seal is then refitted, sealing and firm seating
are no longer guaranteed.
- Therefore, each seal that is completely removed must be
renewed with a so-called “tap-on seal”.
- If a seal has been partially removed, squeeze sides of seal
together before installing
- Removal and installation are described only for the left door
inner seal. The right side is similar.
- For reasons of clarity, the front door is shown in removed
state
|
|
|
| – |
Remove sill panel moulding
→ General body repairs, interior; Rep. gr.70. |
| – |
To remove door inner seal, remove pillar trims as required
→ General body repairs, interior; Rep. gr.70. |
| – |

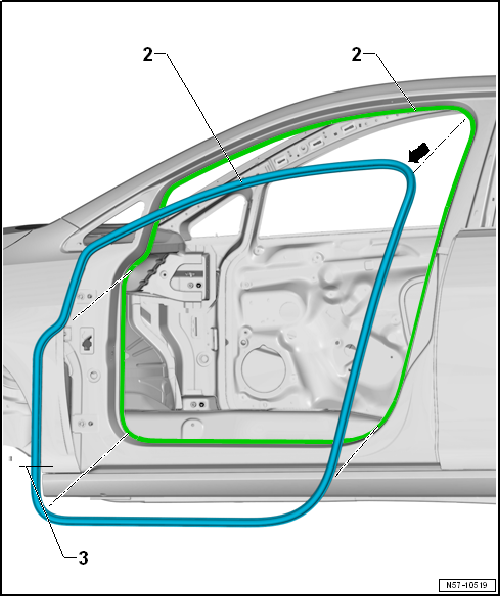

Pull door inner seal -1- off body
flange -2-. |
| – |
Start installing door inner seal -1- at
top radius of door aperture -arrow b-. |
| – |
Align vulcanised point -3- above lower
hinge. |
| – |
Install pillar trims
→ General body repairs, interior; Rep. gr.70. |
| – |
Install sill panel strip
→ General body repairs, interior; Rep. gr.70. |
