 Note
| Removal and installation are described for the left vehicle
side. Follow same instructions for the right side as
appropriate. |
| Special tools and workshop equipment
required |
|
|
|
| |
|

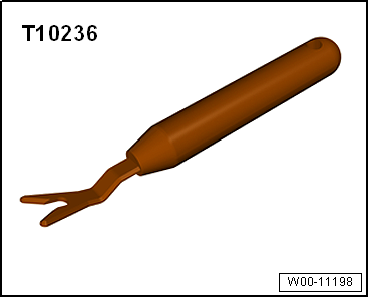

Release tool -T10236- |
| – |
Remove seat trim on sill side
→ Chapter. |
| – |

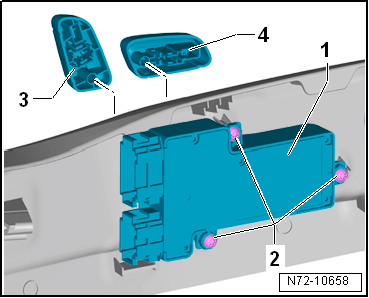

Carefully lever buttons -3- and
-4- out of catches on seat
adjustment operating unit using release tool -T10236-. |
| – |
Remove seat adjustment operating unit
-1-. |
| Installation is carried out in reverse order. |
|
|
|
| Component |
Specified
torque |
| Bolt -1- |
1 Nm |
