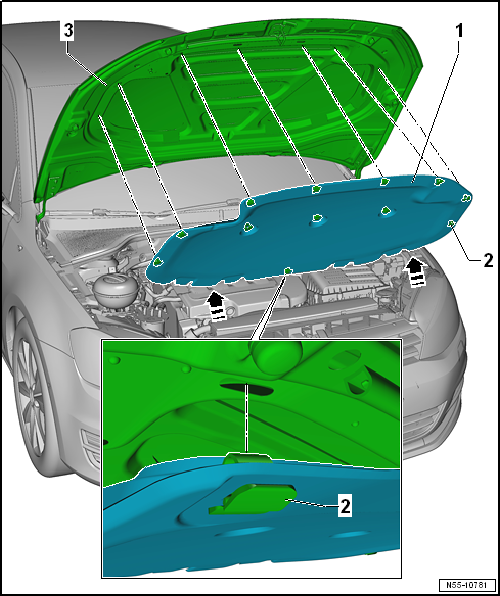

Lever retaining clips -2- out of bonnet
-3- using removal lever -80-200-. |
| – |
Pull insulation -1- out of elongated
holes -arrows-. |
| l |
When installing insulation -1-, ensure
that retaining clips -2- are fitted with
wide side outwards. |
| – |
Slide insulation -1- with fitting lugs
-arrows- in longitudinal holes. |
| – |
Insert all retaining clips -2- into
bonnet -3-. |
Questions & answers
Removing and installing insulation — Volkswagen Golf Mk7
How do I remove the Golf Mk7 bonnet insulation?
Lever the retaining clips out with a removal tool, then pull the insulation out of the elongated holes in the bonnet.
What is the Golf Mk7 bonnet insulation for?
It reduces engine noise and provides thermal insulation to protect the bonnet paint from engine heat.
