| 1 - |
Footwell vent on driver side |
| Removing and installing
→ Chapter |
| Assembly overview
→ Chapter. |
| 2 - |
Temperature flap control motor -V68- |
| Removing and installing
→ Chapter |
| 3 - |
Air distribution flap control motor -V428- |
| Removing and installing
→ Chapter |
| 4 - |
Dust and pollen filter |
| Removing and installing
→ Chapter |
| 5 - |
Air recirculation flap control motor -V113- |
| Removing and installing
→ Chapter |
| 6 - |
Fresh air blower -V2- |
| Removing and installing
→ Chapter |
| 7 - |
Footwell vent on front passenger side |
| Removing and installing
→ Chapter |
| Assembly overview
→ Chapter. |
| 8 - |
Auxiliary air heater element -Z35- with auxiliary air heater control
unit -J604- |
| Removing and installing
→ Chapter |
| Removing and installing
→ Chapter |
| 10 - |
Operating and display unit |
| Removing and installing
→ Chapter |
Questions & answers

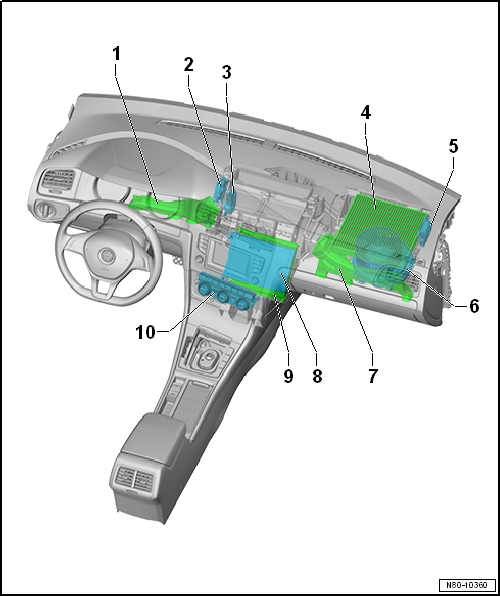

Overview of fitting locations - components inside of front passenger compartment, LHD vehicles — Volkswagen Golf Mk7
What heating components are inside the Golf Mk7 cabin (LHD)?
Footwell vents, temperature sensors -G56/G150/G191-, dust and pollen filter, fresh air blower -V2-, and all flap control motors.
