 Note
| Removal and installation is described for the rear left
speed sensor. Removal and installation of the rear right speed
sensor is analogous. |
|
|
|

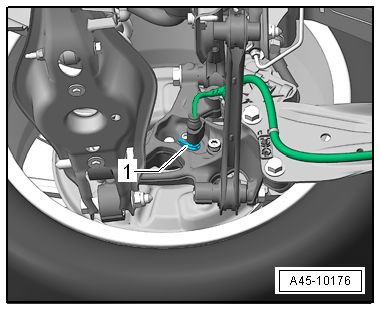

| Rear left speed sensor -G46--1-: |
|
|
|
| – |

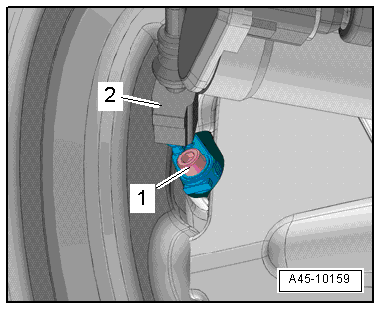

Disconnect connector -2- from
rear left speed sensor -G46-. |
| – |
Unscrew bolt -1- and pull speed
sensor out of wheel bearing housing. |
| Install in reverse order of removal, observing the
following: |
| – |
Clean inside surface of hole before inserting speed sensor. |
| – |
Coat speed sensor all-round with high-temperature paste
G 052 112 A3. |
| → Chapter „Assembly overview - speed sensor on rear axle,
front-wheel drive“ |
|
|
|
Questions & answers
Removing and installing speed sensor on rear axle -G44-/-G46-, vehicles with front-wheel drive — Volkswagen Golf Mk7
How do I remove the Golf Mk7 FWD rear ABS speed sensor?
Disconnect the connector at the body, unbolt from the bearing housing and pull the sensor out. Route the cable correctly on refitting.
