Volkswagen Golf Mk7 Service & Repair Manual: Checking condensation drainage

This page covers checking the Volkswagen Golf Mk7 condensation drainage — remove the right centre console footwell trim, then carefully fold back the floor covering to access the condensation drain hose.

Checking
–  Remove right centre console trim in footwell → General body repairs, interior; Rep. gr.68.
–  Carefully fold back floor covering in area of condensation drain hose so that condensation drain hose is visible.

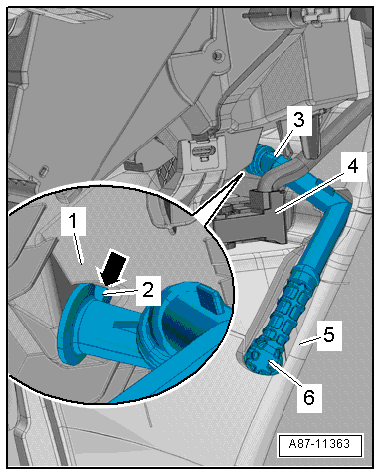

–  Lug -arrow- on connecting piece must engage in guide -2-.


Checking condensation drainage

–  Insert the condensation drain hose -6- in the body opening until it is heard to engage.
  Note

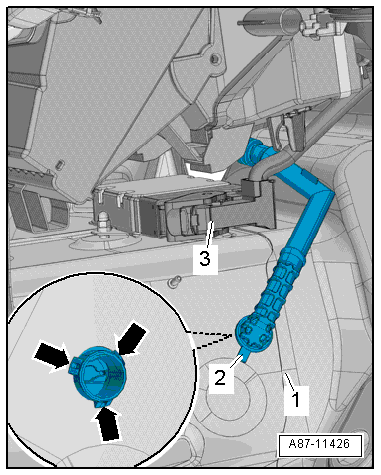

It must be possible to push condensation drain hose -1- onto the heater and air conditioning unit connection without tension.
The condensation drain hose must be fitted securely to the condensation drain connection on the tunnel.
The sealing lip -2- must not be seated loosely on body aperture.
The retainer tabs -arrows- must be fully engaged.
Specified torques:
Centre console; Assembly overview - centre console → General body repairs, interior; Rep. gr.68.


Checking condensation drainage
