| Special tools and workshop equipment
required |
|
|
|
| Vacuum gauge for brake servo -VAS 6721- |
| – |
Pull vacuum hose out of brake servo. |
| First press the brake pedal several times in order to
facilitate removal of the vacuum hose. |
|
|
|
| – |

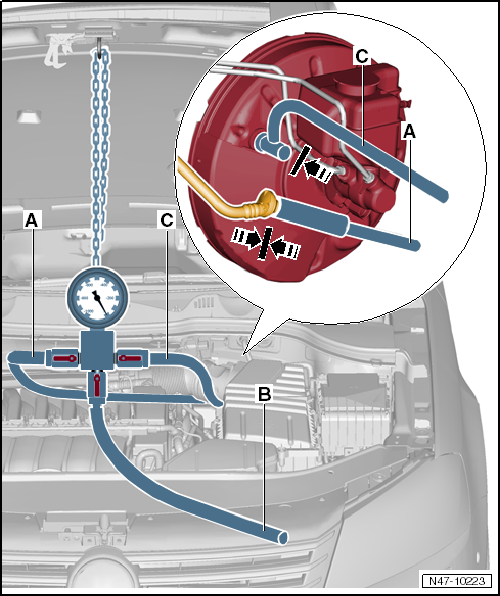

Place brake servo vacuum gauge -VAS 6721- between them
-see following illustrations-. |
|
|
|
| Item number |
Component |
Explanation |
| A |
Cut-off valve |
In direction of vacuum hose,
non-return valve and, if fitted, vacuum pump |
| B |
Cut-off valve |
| Open to facilitate removal of brake servo vacuum gauge -VAS
6721- |
| Open to simulate a fault source |
| Connection of manual vacuum pump -VAS 6213- |
|
| C |
Cut-off valve |
In direction of brake servo |
| – |

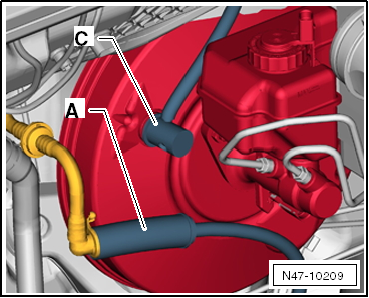

Push hose -A- of brake servo
vacuum gauge -VAS 6721- onto vacuum hose and press adapter
-C- into brake servo. |
|
|
|
