Note
| Removal and installation are described for the left vehicle side.
Follow same instructions for the right side as appropriate. |
| – |

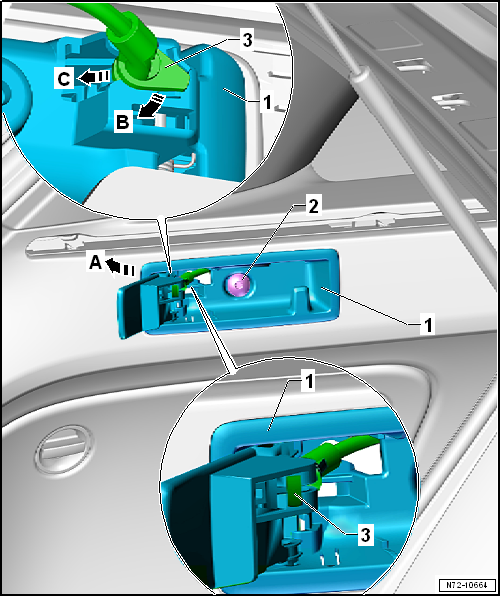

Pull and hold operating mechanism to remotely release seat backrest
-1-. |
| – |
Unclip remote release operating mechanism for seat backrest
-1- from luggage compartment side trim, and
swing it out -arrow A-. |
| – |
Release cable support bracket from Bowden cable
-3--arrow B-. |
| – |
Push Bowden cable -3- out of cable
support bracket of remote release mechanism for seat backrest
-1--arrow C-. |
| – |
Detach pin of Bowden cable -3- from
handle for remote release mechanism for seat backrest
-1-. |
| – |
Remove remote operating mechanism for seat backrest. |
| Install in reverse order, but note the following: |
Note

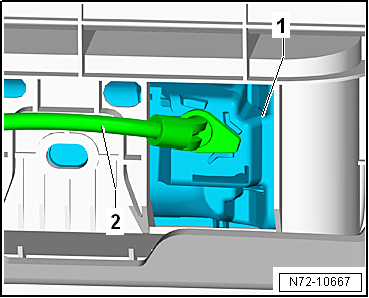

| Ensure that cable support bracket of Bowden cable
-2- is properly seated in locating
lugs of remote release operating mechanism for seat backrest
-1-. |
| |
→ Chapter „Assembly overview - luggage compartment side trim“ |
|
|
|
