Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - three-point seat belt, 2-door model, without belt tensioner

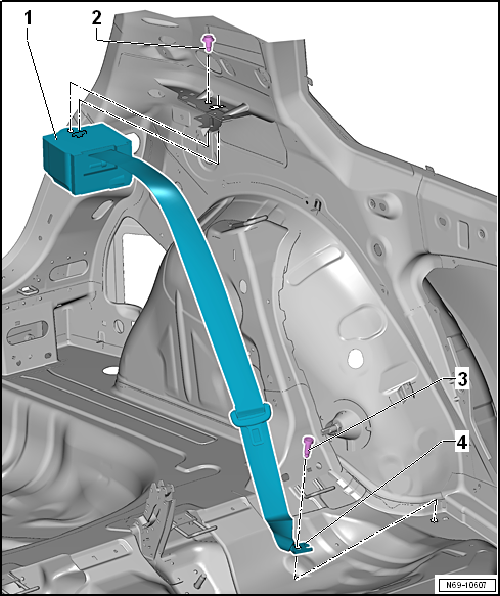

This assembly overview covers the 2-door Volkswagen Golf Mk7 rear seat belt without a tensioner: the inertia reel and two 40 Nm bolts, both marked for mandatory renewal after an accident.
| 1 - | Belt inertia reel |
- Removing and installing → Chapter
| 2 - | Bolt |
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 3 - | Bolt |
- If removed due to an accident with seat belt fastened, renew bolt
- 40 Nm
| 4 - | Rear outer belt end fitting |
- Removing and installing → Chapter
