Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - sill panel moulding

This assembly overview covers the Volkswagen Golf Mk7 sill panel moulding for 4-door (I) and 2-door (II) models, left side shown (right is a mirror image), with the sill panel strip's removal cross-reference.

  Note

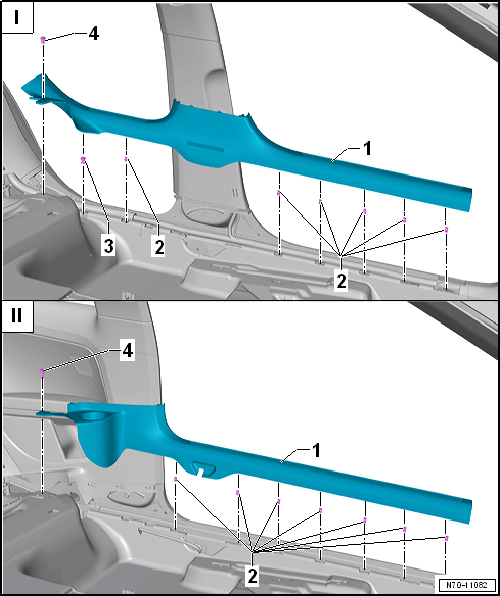

The illustration shows the sill panel moulding on the left side. The right-hand side is similar (mirror image of left-hand side).

I: sill panel moulding, 4-door model

II: sill panel moulding, 2-door model

1 -	Sill panel strip

• Removing and installing → Chapter

2 -	Retaining clip

• Insert into sill panel moulding
• Remove any retaining clips left in body mountings using removal tool -T40280- and fit them in sill panel moulding for installation.
• Renew any damaged or deformed retaining clips

3 -

Bracket

• Insert into body

4 -	Spreader clip

Questions & answers

Assembly overview - sill panel moulding — Volkswagen Golf Mk7

What does the Golf Mk7 sill panel moulding assembly show?

The sill cover for 2-door and 4-door models (different lengths), clips and mounting points. Left shown; right is mirror image.
