| Special tools and workshop equipment
required |
|
|
|
 Note
| Removal and installation are described only for the right
door window. The left side is similar. |
|
|
Torque wrench -V.A.G 1783- |
| – |
Remove front door trim
→ General body repairs, interior; Rep. gr.70. |
| – |
Remove inner door cover -3-
→ Chapter. |
| – |
Lower door window -2- until locking
hooks -7- for door window are accessible. |
Note
-
| |
If this part of the work cannot be done due to a fault in
window regulator motor, the window regulator motor can be removed
-5-. |
-
| |
The window can then be pushed to required working position. |
| – |
Carefully press locking hooks -7-
through opening in the window. Slightly lift the door window to avoid
that it does not fall back again in the locking hook. |
| – |
Lift door window -1- upwards out of
window regulator. |
| – |

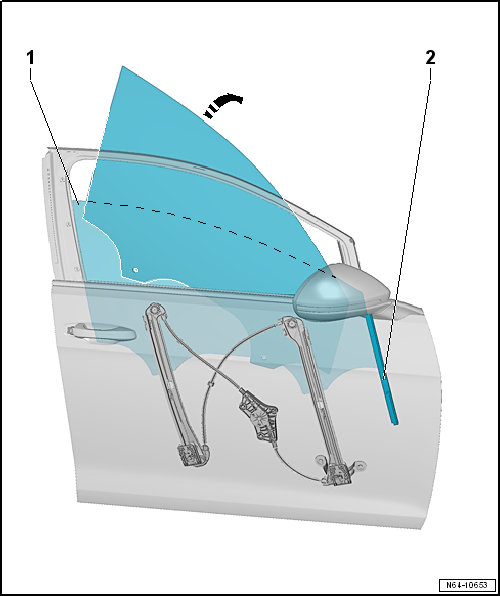

Lift door window -1- from behind and
swing forwards out of window channels -2--arrow-. |
| – |

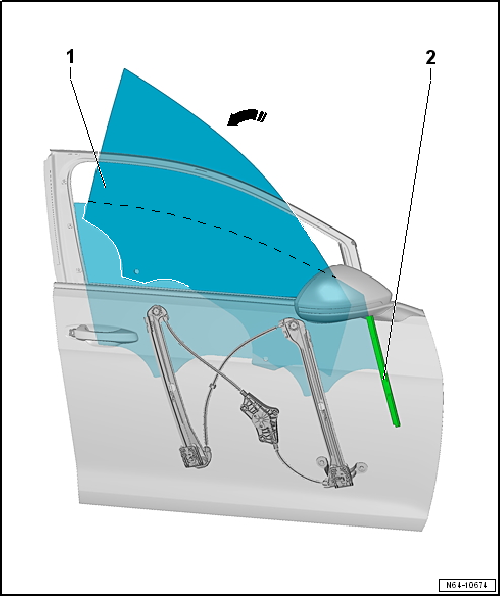

Insert door window -1- into window
channels -2--arrow-. |
Note
| Ensure that door window is properly located in window channel. |
| – |
Guide door window without force into clamping jaws of window
regulator. |
| – |
Align door window with rear window frame. |
| – |
Press door window -1- into clamping
jaws until the locking hooks -7- in the
door window engage. |
| Further installation is performed in the reverse order of removal. |
| – |
Before the inner door cover, the cable feed and the door trim are
installed, carry out a functional test. |
