Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing tank pressure sensor -G400

Note: the tank pressure sensor -G400- on the Volkswagen Golf Mk7 is located in the pressure regulating valve on the activated charcoal filter — this page covers removing it from there.

Removing   Note The tank pressure sensor -G400- is located in the pressure regulating valve on the activated charcoal filter → Chapter. –  Remove activated charcoal filter → Chapter.

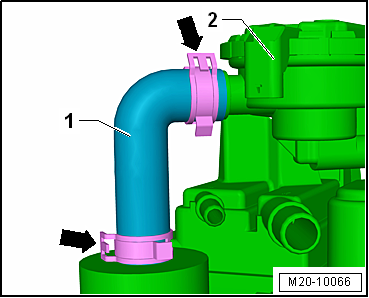

–  Remove hose -1- from activated charcoal filter -2-. –  To do this, loosen clamps -arrows-.

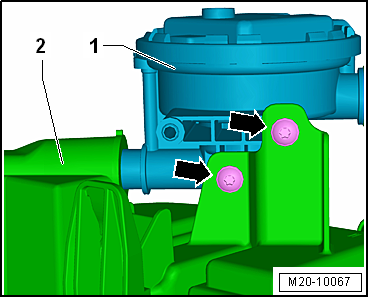

–  Unscrew bolts -arrows- for pressure regulating valve -1- on activated charcoal filter -2-.

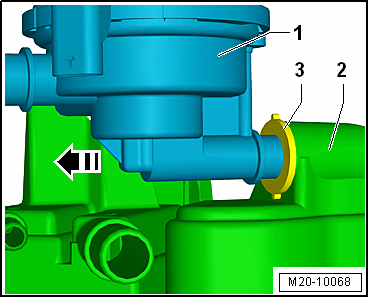

–  Pull pressure regulating valve -1- in -direction of arrow- out of seal -3- on activated charcoal filter -2-. Installing

Install in reverse order. In the process, note the following: –  Make sure that seal -3- is properly seated. Specified torque → Chapter „Assembly overview - activated charcoal filter system“
