Using torque wrench -V.A.G 1331-, this page gives the full removal procedure for the Volkswagen Golf Mk7 bonnet: removing the washer spray jets, pulling the washer line free, and loosening the hinge nuts on both sides before lifting the panel clear.
| Special tools and workshop equipment
required |
|
|
|
|
|
|
Torque wrench -V.A.G 1331- |
| – |

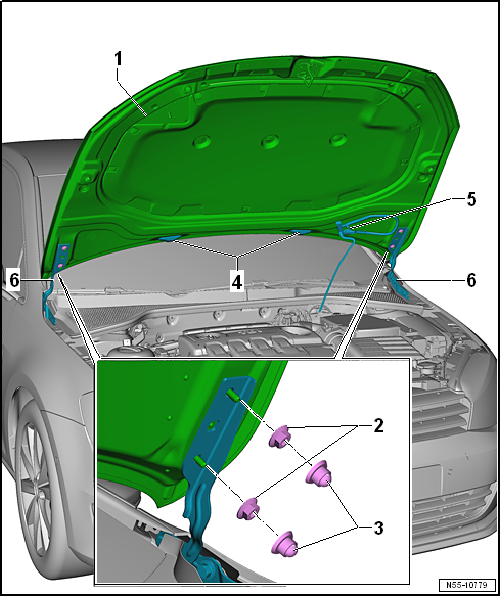

Remove spray jets -4-
→ Electrical system; Rep. gr.92. |
| – |
Pull line -5- out of opening in bonnet
-1-. |
| – |
If fitted, remove caps -3-. |
| – |
Loosen hexagon nuts -2- on left and
right hinge -6- (do not remove). |
| Further dismantling requires the assistance of a second mechanic. |
| – |
Now, unscrew and remove hexagon nuts -2-
and lift bonnet -1- out of hinges
-6-. |
| Installation of bonnet -1- is carried
out accordingly in reverse order of removal. |
Note
| Install the line -5- in a curve. If
line is installed twisted it will kink. |
| – |
Adjusting bonnet -1-
→ Chapter. |
| |
Hexagon nuts
→ Chapter „Assembly overview - bonnet“ |
