Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - front three-point seat belt, 4-door model and estate

This assembly overview covers the 4-door/estate Volkswagen Golf Mk7 front seat belt: a 40 Nm bolt marked for mandatory renewal after an accident, plus the belt guide with its correct installation position noted.

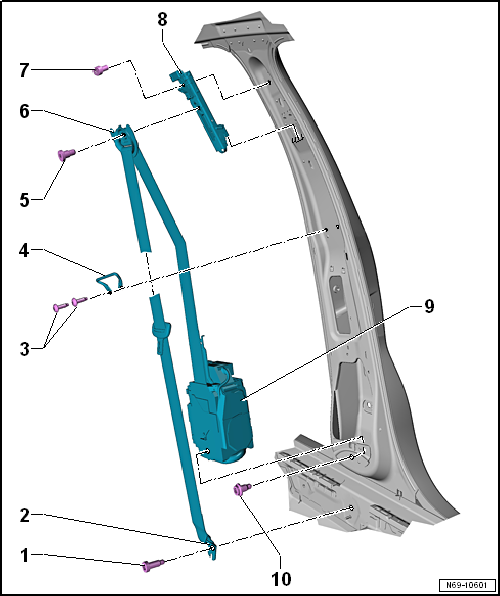

Assembly overview - front three-point seat belt, 4-door model and estate

1 -  Bolt
  • If removed due to an accident with seat belt fastened, renew bolt.
  • 40 Nm
2 -  Belt end fitting
  • Removing and installing → Chapter
3 -  Bolts
  • Qty. 2
  • 4.5 Nm
4 -  Front belt guide
  • Removing and installing → Chapter
  • Observe correct installation position when installing
5 -  Bolt
  • If removed due to an accident with seat belt fastened, renew bolt.
  • 40 Nm
6 -  Belt guide fitting
  • Must move to vertical position or operated position on its own after bolt has been tightened
7 -  Bolt
  • If removed due to an accident with seat belt fastened, renew bolt
  • 20 Nm
8 -  Belt height adjustment
  • Removing and installing → Chapter
  • Always renew after belt tensioner has deployed with seat belt fastened
9 -  Belt inertia reel
  • Driver side: with driver seat belt tensioner igniter 1 -N153- and control unit for front left belt tensioner -J854
  • Front passenger side: with front passenger seat belt tensioner igniter 1 -N154- and control unit for front right belt tensioner -J855-.
  • Removing and installing → Chapte
  • For vehicles with control unit for front left belt tensioner -J854- or control unit for front right belt tensioner -J855-, the airbag control unit -J234- must be adapted in → Guided fault finding after renewing the seat belt. If the → Guided fault finding is already running, then refresh test plan “15 - Airbag”.
10 -  Bolt
  • If removed due to an accident with seat belt fastened, renew bolt
  • 40 Nm
