Fold down lid for through-loading aperture. |
| – |

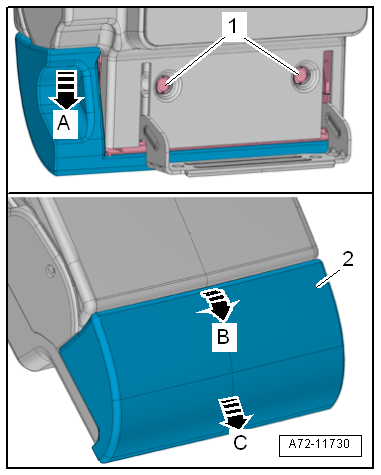

Release locking lugs -1- using
a screwdriver and at the same time push down intermediate
padding -2- as far as stop
-arrow A-. |
| – |
Slightly lift up intermediate padding
-arrow B- on top and at the same time detach it at bottom
from lid for through-loading aperture
-arrow C-. |
| Installation is carried out in reverse order. |
|
|
|
Questions & answers
Removing and installing intermediate padding, backrest with through-loading aperture — Volkswagen Golf Mk7
How do I remove the Golf Mk7 through-loading aperture intermediate padding?
Fold down the lid. Release locking lugs with a screwdriver and push the padding downward out of its frame.
Special tools and workshop equipment
required
Removal wedge -3409
...
Special tools and workshop equipment
required
Upholstery clip pliers -V.A.G 1634
...
