Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing door

This page covers removing and installing the Volkswagen Golf Mk7 front left door using the full special tool set — door alignment tool -3320- with its bits, torque wrench -V.A.G 1331-, socket -3410- and setting gauge -3371- — for a job that must return the door to precise factory alignment.

Special tools and workshop equipment required
  • Door alignment tool -3320-
  • Universal joint for 3320 -3320/1
  • Bit for 3320 -3320/2-
  • Bit for 3320 -3320/3-
  • Torque wrench -V.A.G 1331-
  • Socket -3410-
  • Setting gauge -3371-

  Note
The removal and installation sequence is for the front left door. Removal and installation of the front right door are similar.
Removing


Removal wedge -3409-
Removal wedge -3409-



Removing and installing door

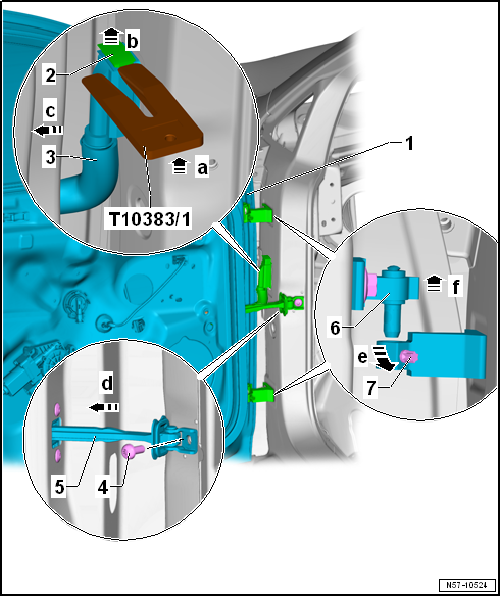

–  Press wedge -T10383/1- between bellows -3- and locking mechanism -arrow a-.
–  Push locking mechanism upwards -2- with wedge -T10383/1--arrow b- and separate electrical connector -3- from coupling station -arrow c-.
–  Undo screws -7- from hinges.
–  Unscrew bolt -4- for door retaining strap -5-.
–  Push door arrester -6- inwards -arrow d-.
–  Lift front door -1- upwards -arrow f- so that hinge -6- is released from hinges -7-.


Installing


Removing and installing door

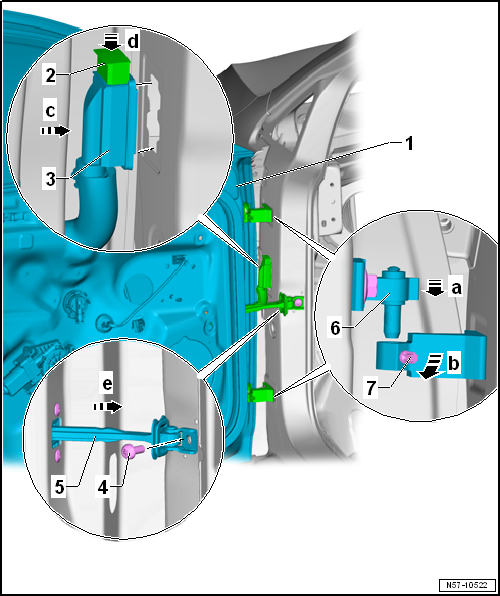

Install in reverse order of removal. To this end, the following should be observed:
  Caution
Prior to installing the front door, the door retaining strap must be folded towards the inside of the vehicle in order to avoid damage to the paintwork.
  Note
After door installation the hinge arms must be flush one above the other.
–  Adjust front door -1- → Chapter.
–  Observe front door shut lines -1- → Rep. gr.00.
Specified torques
Door arrester and hinges → Chapter „Assembly overview - door“
