Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing front passenger side footwell cover

This page covers removing the Volkswagen Golf Mk7 front passenger footwell cover: remove the bolts, then release the cover from the dash panel and centre console.

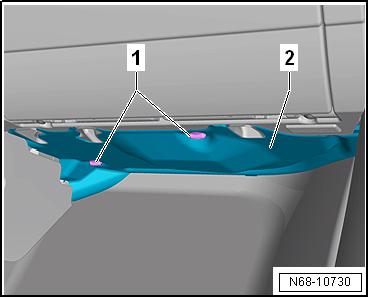

Removing –  Remove bolts -1-. –  Release front passenger side footwell cover -2- from dash panel and centre console and remove it. Installing   Note   Before installing, check all fasteners for damage and renew if necessary.   Bolts -1- must be tightened hand-tight. Installation is carried out in reverse order.

Questions & answers

Removing and installing front passenger side footwell cover — Volkswagen Golf Mk7

How do I remove the Golf Mk7 passenger footwell cover?

Remove bolts, release from dash panel and centre console, and remove the cover.
