Using torque wrench -V.A.G 1331- and socket -3410-, this page covers removing the Volkswagen Golf Mk7 left door lock (the right side is similar) — noting the door window must be closed before starting this procedure.
| Special tools and workshop equipment
required |
|
|
|
| |
|
Torque wrench -V.A.G 1331- |
 Note
| |
Removal and installation are described only for the left
door lock. The right side is similar. |
| |
The door window must be closed for subsequent work. |
|
|
Socket -3410- |
| – |
Remove front door trim
→ General body repairs, interior; Rep. gr.70. |
| – |
Remove inner door cover
→ Chapter. |
| – |
Remove door handle
→ Chapter. |
| – |
If fitted, disconnect connector. |
| – |

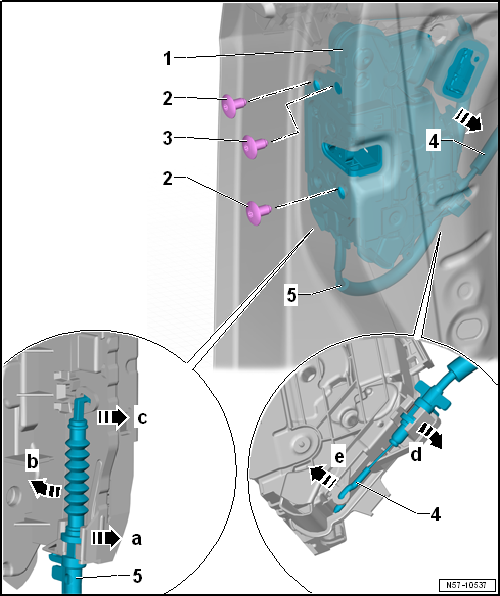

Remove door lock -1- from door
-arrow-. |
Note
| Cables can be detached if this is necessary for subsequent work. |
| Detach cable from mounting bracket |
| – |
Turn cable -5- through 90°
-arrow a- and take out of holder. |
| – |
Swivel cable -arrow b- upwards until
cable can be threaded out of eye in door lock
-1--arrow c-. |
| Detach cable from interior door handle |
| – |
Turn cable -4- by 90° and take it out
of holding device. |
| – |
Swivel cable -arrow d- so far until
cable can be threaded out of eye in door lock
-1--arrow e-. |
| – |

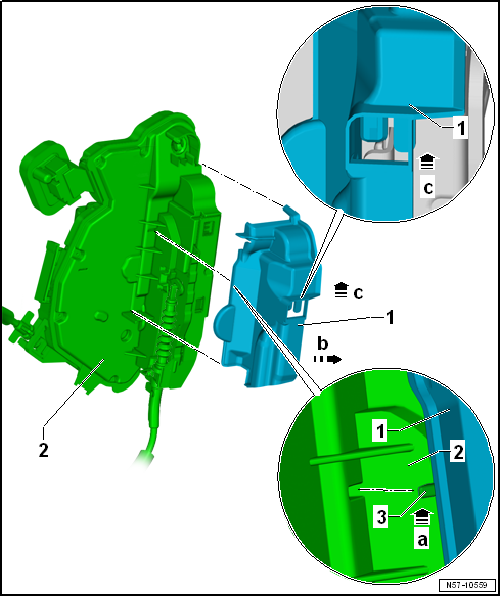

Disengage hook -3- in
-direction of arrow a-. |
| – |
Use the hook to pull cover -1- out of
door lock -2--arrow b-. |
| – |
Pull cover -1- upwards
-arrow c- from door lock
-2-. |
| – |

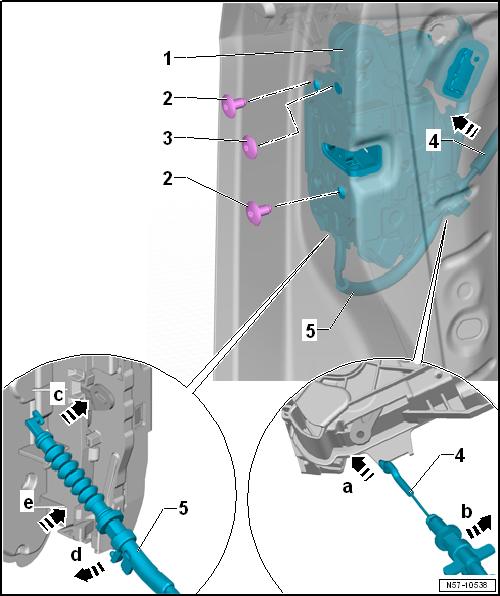

Attach cables -4- and
-5- to door lock -1-. |
| – |
Insert door lock -1- into door. |
| – |
If fitted, connect connector. |
| Further installation is performed in the reverse order of removal. |
| It is essential that a functional check is then performed with the
door open. If the cables are not adjusted correctly and the door is
closed without having performed a functional check, the door lock might
not unlock and the door can't be opened. |
| |
Bolts
→ Chapter „Assembly overview - door handle and door lock“ |

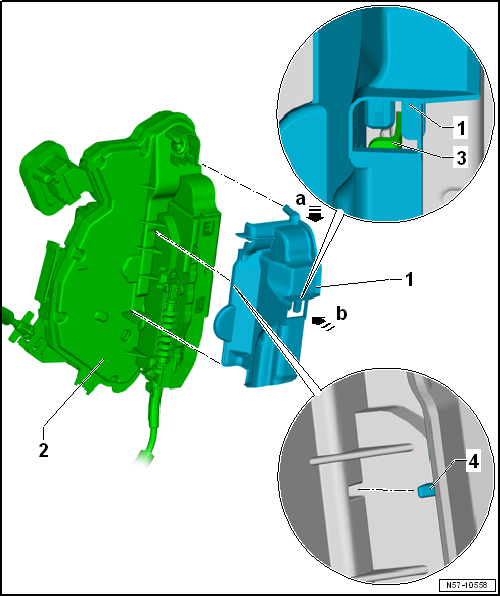

Fit cover
| – |
Push cover -1- onto retainer
-3- on door lock
-2--arrow a-. |
| – |
Engage hook -4- with door lock
-2--arrow b-. |
