Volkswagen Golf Mk7 Service & Repair Manual: Overview of fitting locations - front control motors, air conditioning system with electric/manual controls, LHD vehicles

This overview maps LHD Volkswagen Golf Mk7 electric/manual AC control motors: the temperature flap motor -V68- with potentiometer -G92-, checked with the diagnostic tester.

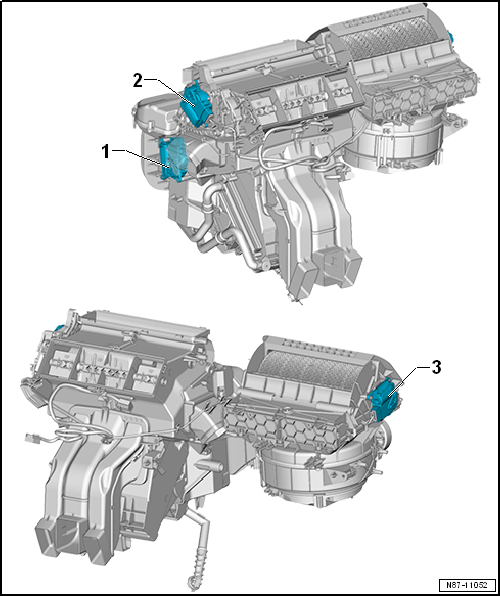

Overview of fitting locations - front control motors, air conditioning system with electric/manual controls, LHD vehicles

1 -  Temperature flap control motor -V68-
With potentiometer for temperature flap control motor -G92-.
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
2 -  Air distribution flap control motor -V428-
With potentiometer for air distribution flap control motor -G645-.
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
3 -  Air recirculation flap control motor -V113-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter.
Renewing: initiate basic setting using vehicle diagnostic tester.
