Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing baffle plate, RHD vehicles

This page covers removing the RHD Volkswagen Golf Mk7 baffle plate — the same plug-to-bolt replacement rule applies as the LHD version.

Removing

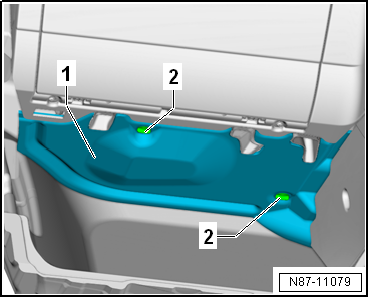

–  Depending on version, remove plastic bolt or plug -2- and remove baffle plate -1-. Installing –  Install in reverse order.   Note Always replace plugs with plastic bolts → Electronic Parts Catalogue. Specified torques: Bolts -2- → Item.
