Volkswagen Golf Mk7 Service & Repair Manual: Overview - power transmission

This overview explains the Volkswagen Golf Mk7 7-speed DSG 0CW's front-wheel-drive power path: five shafts total — 2 input shafts and 3 output shafts — working across the dual clutch.

Overview - power transmission - front-wheel drive
The 7-speed dual clutch gearbox 0CW equipped with 5 shafts. 2 input shafts and 3 output shafts.

Overview - power transmission

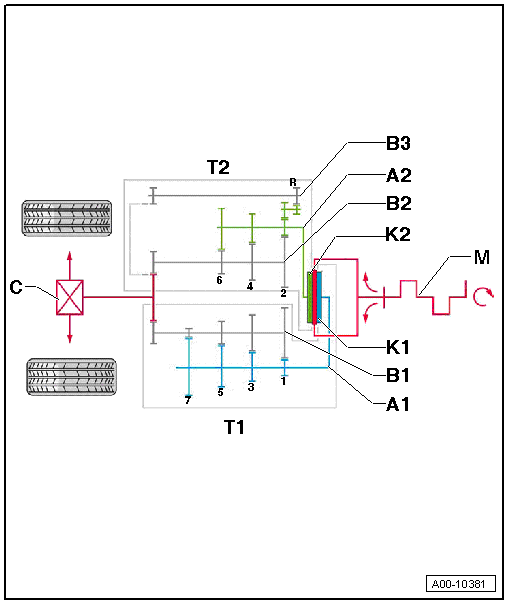

A1 -  Input shaft 1
A2 -  Input shaft 2
B1 -  Output shaft 1
B2 -  Output shaft 2
B3 -  Output shaft 3
C -  Front final drive
K1 -  Dual clutch 1
K2 -  Dual clutch 2
M -  Engine
T1 -  Sub-gearbox 1
with gears 1, 3, 5 and 7
T2 -  Sub-gearbox 2
with gears 2, 4, 6 and reverse gear R
