Volkswagen Golf Mk7 Service & Repair Manual: Undercoating, additional protected areas on hybrid vehicles
This page maps the additional undercoated areas on the hybrid (GTE) Volkswagen Golf Mk7 rear body: 0.3 mm and 0.5 mm coat thicknesses around the HV battery area.

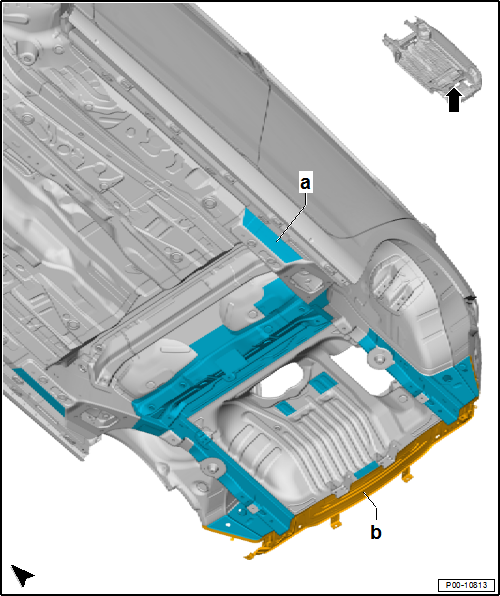

| Undercoating, rear body of hybrid vehicles |
| a - | Undercoating |
| Coat thickness: 0.3 mm |
| b - | Undercoating |
| Coat thickness: 0.5 mm |
Questions & answers
Undercoating, additional protected areas on hybrid vehicles — Volkswagen Golf Mk7
Do Golf Mk7 hybrid vehicles have extra undercoating?
Yes. Additional protection on the rear underbody around the high-voltage battery area, with specific coat thicknesses of 0.3 mm and 0.5 mm.
