Tighten release lever -1- and unlock
bonnet. |
| – |

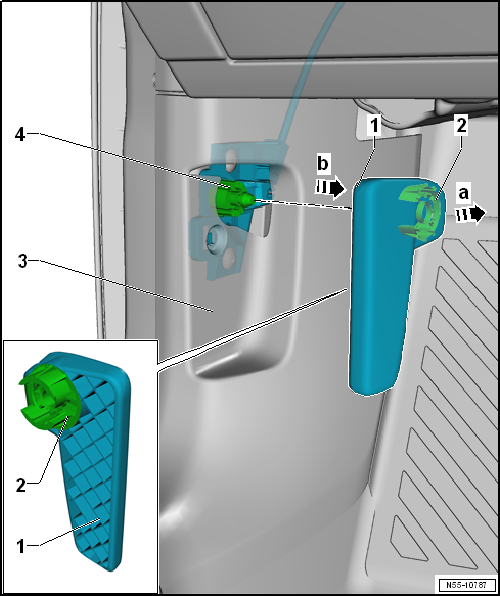

Insert a small screwdriver in gap between release lever
-1- and retaining clip
-2-. |
| – |
Lever retaining clip -2- out of release
lever -1--arrow b- and pull release lever
off mounting bracket -3--arrow a-. |
| For further work on mounting bracket -3-,
A-pillar lower trim -4- must be removed
→ General body repairs, interior; Rep. gr.70. |
| l |
Lower A-pillar trim -3- is installed. |
| – |
Push retaining clip -2- into release
lever -1-. |
| – |
Press retaining lever -1- onto mounting
bracket -4-. |
| – |
Before closing bonnet, check function of release lever and cable. |
Questions & answers
Removing and installing bonnet release lever — Volkswagen Golf Mk7
How do I remove the Golf Mk7 bonnet release lever?
Tighten the lever to unlock the bonnet, insert a small screwdriver between the lever and retaining clip, lever the clip out, then pull the release lever off its pivot.
Is a special tool needed for the Golf Mk7 release lever?
Only a small flat-blade screwdriver to release the retaining clip. No VW-specific tools are required.
