Using locating pins -T10096- and jack -V.A.G 1383 A-, this page covers fixing the 4MOTION multi-link rear subframe's original position.
| Special tools and workshop equipment
required |
|
|
|

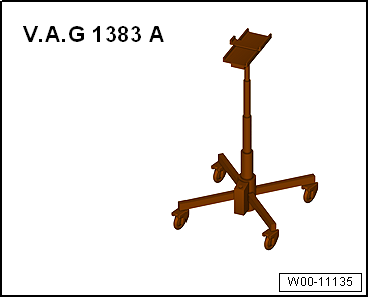

| Engine and gearbox jack -V.A.G 1383 A- |

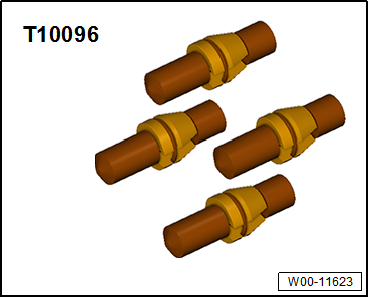

| Installing locating pins -T10096- |
|
|
|
| – |

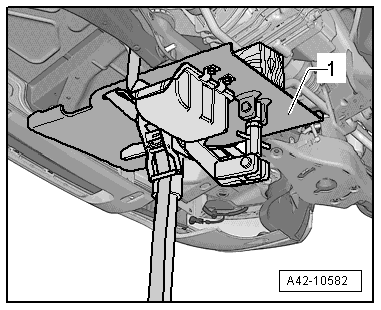

Position engine and gearbox jack -V.A.G 1383 A- with
universal gearbox mounting -V.A.G 1359/2--1-
under subframe and secure with tensioning strap. |
|
|
|

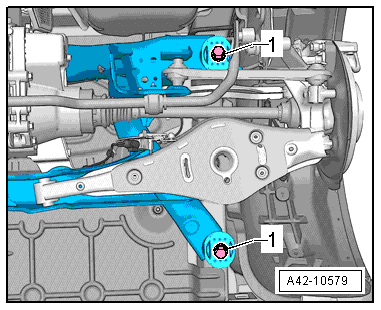

| To fix position of subframe, locating pins -T10486- must be
screwed in successively at positions -1-
on both sides of vehicle. |
| – |
Unscrew one bolt -1- on each
side. |
 Note
| Only the left side of vehicle is shown to improve clarity. |
|
|
|
| – |

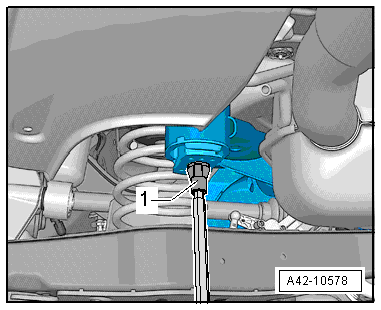

Screw in locating pins -T10096--1-. |
Note
| The locating pins -T10096- may be tightened only to a
maximum of 20 Nm; otherwise the threads of the locating pins may
be damaged. |
| – |
Replace securing bolts on subframe one after the other on
both sides with a locating pin from the locating pin set
-T10486--1- and tighten to 20 Nm. |
| The position of the subframe is now fixed. |
|
|
|
