 Note
| Removal and installation are described for the left
vehicle side. Follow same instructions for the right side as
appropriate. |
| Special tools and workshop equipment
required |
|
|
|
| |
|

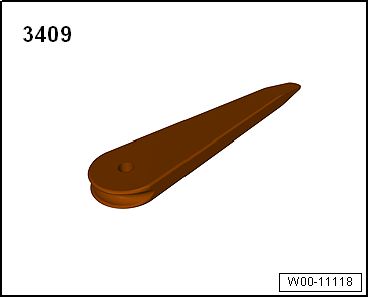

Removal wedge -3409 |
| – |
Remove side dash panel cover
→ Chapter. |
| – |

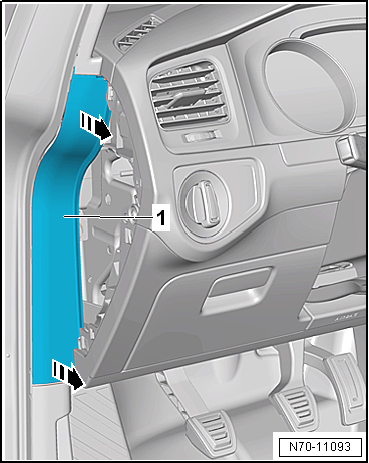

Unclip A-pillar gap cover -1-
from upper A-pillar trim and lower A-pillar trim
-arrows-. |
| – |
Release A-pillar gap cover -1-
from door seal beading and remove it. |
Note
| Following installation, ensure that the A-pillar gap
cover is positioned in door seal beading. |
| Installation is carried out in reverse order. |
|
|
|
