Note
| |
The head restraints can be renewed with front seat installed. |
| |
The release button of the driver seat is located on outer right side
in direction of travel. The release button of the front passenger seat
is located on inner left side in direction of travel. |
| – |
Move front seat to foremost and lowest position and tilt backrest by
45°. |
| – |
Press padding in area of head restraint guides downwards a little. |
| – |

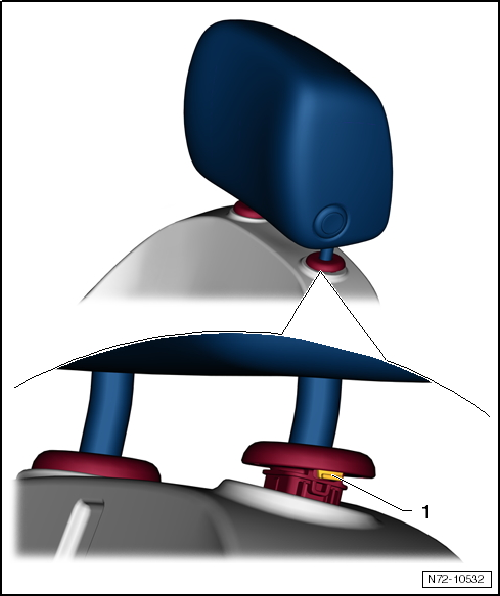

Push safety catch -1- of each of the
two head restraint guides towards the holding tube as far as it will go. |
| – |
Pull head restraint out of backrest. |
| Installation is carried out in reverse order. |
|
Questions & answers
Removing and installing head restraint — Volkswagen Golf Mk7
How do I remove a Golf Mk7 front head restraint?
Can be done with seat installed. Press the release button (outer right on driver seat, outer left on passenger) and pull the headrest up and out.
Special tools and workshop equipment
required
Removal pliers -3392-
Note
...
Removing
–
Remove backrest cover and backrest padding
→ Chapter.
...
Removing and installing lumbar support adjustment
Removing and installing head restraint guide
