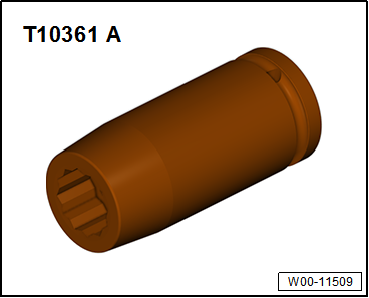

Using socket 24 mm -T10361A- and angle wrench -V.A.G 1756 A-, this page covers the rear drive shaft's threaded connections — Caution: the wheel bearing must not be loaded once the hub bolt is loosened.
| Special tools and workshop equipment
required |
|
|
|
| Angle wrench -V.A.G 1756 A- |
Caution
| Wheel bearings must not be subjected to load after
bolt securing drive shaft to wheel hub has been
loosened. |
| If wheel bearings are loaded with weight of vehicle,
bearing will be damaged. This reduces the service life
of the wheel bearing. |
| It is not permissible to loosen drive shaft bolt
more than 90° if vehicle is standing on its wheels. |
| Do not attempt to move the vehicle without the drive
shafts fitted as this would damage the wheel bearing. If
a vehicle nevertheless has to be moved, comply with the
following: |
| Install an outer joint instead of the drive shaft. |
| Tighten outer joint to 120 Nm. |
|
| Loosen outer bolt on drive shaft. |
| – |
To avoid damage to wheel bearing, do not loosen bolt using
24 mm socket -T10361A- further than 90° with vehicle still
standing on its wheels. |
| – |
Raise vehicle so that wheels are off the ground. |
| – |
Have second mechanic apply brakes. |
|
|
|
| Tighten outer bolt on drive shaft. |
| – |
Renew outer bolt for drive shaft. |
 Note
| It must be ensured that the wheels do not yet touch the
floor when the drive shaft is being tightened. Otherwise the
wheel bearing may be damaged. |
| – |
Have second mechanic apply brakes. |
| – |
Tighten bolt to 200 Nm. |
| – |
Lower vehicle onto its wheels. |
| – |
Turn bolt 180° further. |
|
|
|
