Dismantling and assembling auxiliary heater
→ Chapter. |
| – |

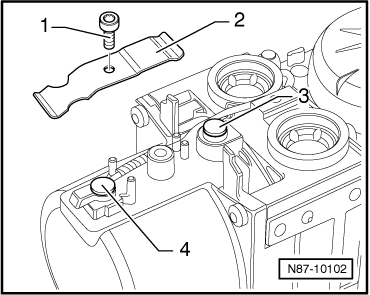

Remove bolt -1- (4 Nm) and
remove retaining spring -2-. |
| – |
Pull out temperature sensor -G18--3-and
overheating sensor -G189--4- using
long nose pliers. |
| Install in reverse order. |
| – |
Check sealing surfaces and clean if necessary. |
| – |
Before inserting sensors, coat seals with coolant. |
|
|
|
| – |
When assembling, ensure that retaining spring is in proper
position -2-. |
 Note
| Sensors cannot be renewed separately. |
| → Chapter „Assembly overview - auxiliary heater attachments“ |
|
|
|
Questions & answers
Removing and installing temperature sensor -G18- and overheating sensor -G189 — Volkswagen Golf Mk7
How do I remove the Golf Mk7 auxiliary heater temperature sensors?
Dismantle the heater. Remove the bolt (4 Nm) and extract the combined temperature/overheating sensor unit.
Removing
–
Dismantling and assembling auxiliary heater
→ Chapter.
...
1 -
6-pin connector
Information on pin assignment can be found in the latest current
flow diagram → Current flow
diagrams, Electrical fau ...
