Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing upper rear lid trim

Using wedges -T10383-, this page covers removing the Volkswagen Golf Mk7 upper rear lid trim — detach the rear shelf retaining straps from the window frame, then release the centre window frame from its mountings.

Special tools and workshop equipment required

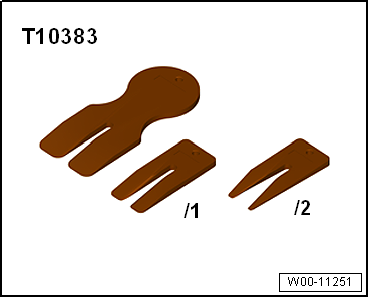

Wedges -T10383
Wedges -T10383
Removing

Removing and installing upper rear lid trim

–  Detach retaining straps for rear shelf on left and right from window frame.
–  Release centre window frame -2- from mountings in rear lid and side trim panels -3- using wedge -T10383-.
–  Remove centre window frame -2-.
–  Release side window frame -3- from catches in rear lid and lower rear lid trim -1- using wedge -T10383-.
–  Remove side window frame -3-.

Installing
  Note
  •   Before installing, check all fasteners for damage and renew if necessary.
  •   Remove any retaining clips left in mountings in rear lid using removal tool -T40280- and fit them in window frames for installation.
Installation is carried out in reverse order.
