 Note
| Removal and installation are described for the trim panel on
driver side. Follow same instructions for the front passenger
side as appropriate. |
| – |
Remove rear door trim
→ Chapter. |
|
|
|
| – |

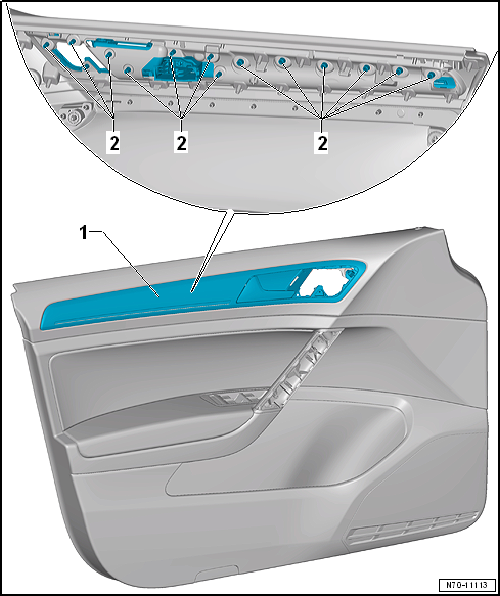

Using an appropriate drill bit, drill mounting points
-2- of trim panel -1-
off door trim, but just until trim panel starts to detach from door
trim. |
 Caution
| The door trim must not be damaged when drilling. |
|
| – |
Carefully release mounting points -2-
one after the other and remove trim panel -1-
from door trim. |
| Clamping washers near trim panel: qty. 7, 17 mm Ч 7.5 mm.
Allocation
→ Electronic Parts Catalogue |
| Clamping washers near inner door handle: qty. 6,
13.4 mm Ч 6 mm. Allocation
→ Electronic Parts Catalogue |
|
|
|
| – |
Insert new trim panel -1- into door
trim. |
| – |

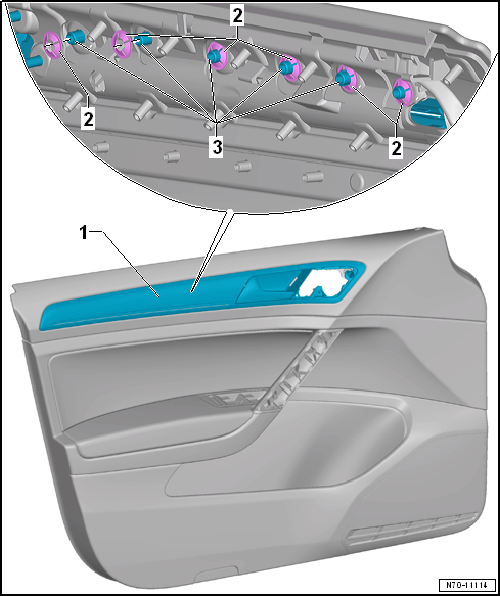

Press clamping washers -2- as far as
stop onto pins -3- of trim panel. |
| – |
Press remaining clamping washers onto pins of trim panel near inner
door handle as described. |
| – |
Cut back pins -3- of trim panel above
clamping washers -2- to max. 2 mm beyond
washers. |
| – |
Install rear door trim
→ Chapter. |
