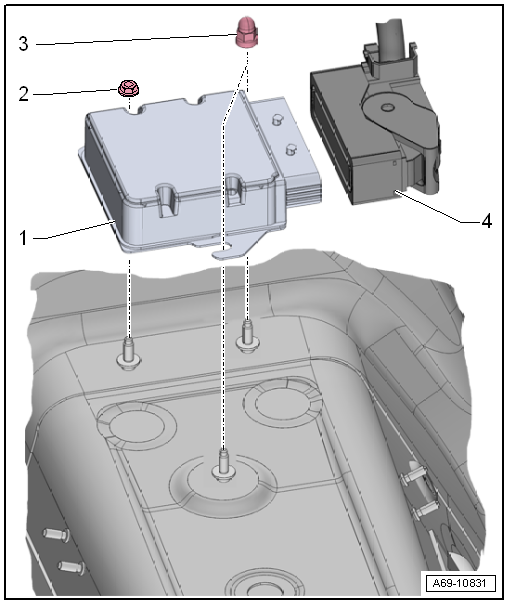

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - airbag control unit
This assembly overview covers the Volkswagen Golf Mk7 airbag control unit -J234-, noting it earths through its housing to the body — the earth stud (9 Nm) threads must be kept free of paint and dirt for a reliable connection.
| 1 - | Airbag control unit -J234- |
- Removing and installing → Chapter
- The control unit is earthed via the housing with the body
| 2 - | Nut |
- Nut and earth stud form the earth connection for the control unit
- Threads must be free of paint and dirt
- 9 Nm
| 3 - | Nut |
- Qty. 2
- Nut and earth stud form the earth connection for the control unit.
- Threads must be free of paint and dirt.
- 9 Nm
| 4 - | Electrical connections |
