 Note
| Removal and installation is described for the sun visor
centre mount on the driver side. Follow same instructions for
the front passenger side as appropriate. |
|
|
|
| – |
Detach sun visor from sun visor centre mount and fold it
aside. |
| – |

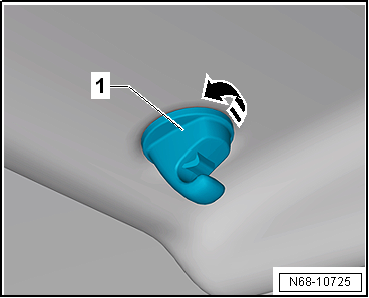

Turn sun visor centre mount -1-
anti-clockwise -arrow- through 90°
(1/4
turn). |
| – |
Remove sun visor centre mount -1-
downwards. |
| Installation is carried out in reverse order. |
|
|
|
Questions & answers
Removing and installing sun visor centre mount — Volkswagen Golf Mk7
How do I remove the Golf Mk7 sun visor centre mount?
Release the clip or bolt securing the centre pivot to the headliner and remove. Driver side described; passenger is similar.
