Using upholstery clip pliers -V.A.G 1634- and hook -3438-, this page covers separating the Volkswagen Golf Mk7 seat pan cover from its padding — on seats with depth adjustment, unclip the beading strips from the locking lugs first.
| Special tools and workshop equipment
required |
|
|
|
| |
|
Upholstery clip pliers -V.A.G 1634 |
| – |
Remove cover and padding
→ Chapter. |
|
|
Hook -3438 |
| Vehicles with seat depth adjustment |
| – |
Unclip beading strips -2- from
locking lugs -5-. |
| – |
Detach seat cover from tabs -4-
on both sides using front end hook -3438-. |
| – |
Remove carrier -3- with seat
padding and seat depth adjustment from seat cover
-1-. |
|
|
|
| Continued for all vehicles |
| – |

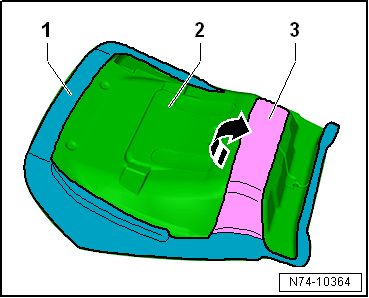

Pull retaining tab -3- of seat
cover -1- in
-direction of arrow- off seat padding
-2-. |
|
|
|
| – |

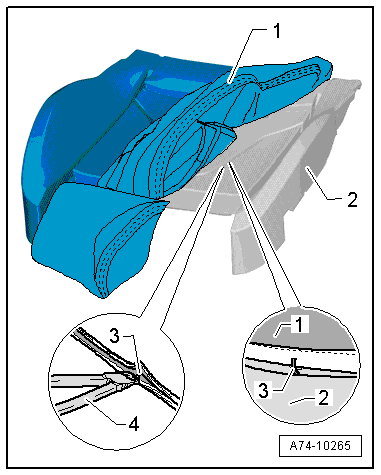

Pull seat cover -1- off seat
padding -2-. |
| – |
Cut through upholstery clips -3-
using pliers -4-. |
| Install in reverse order, but note the following: |
| |
Renew all opened retaining clips
→ Item and fit them in the same positions. |
|
|
|
| – |

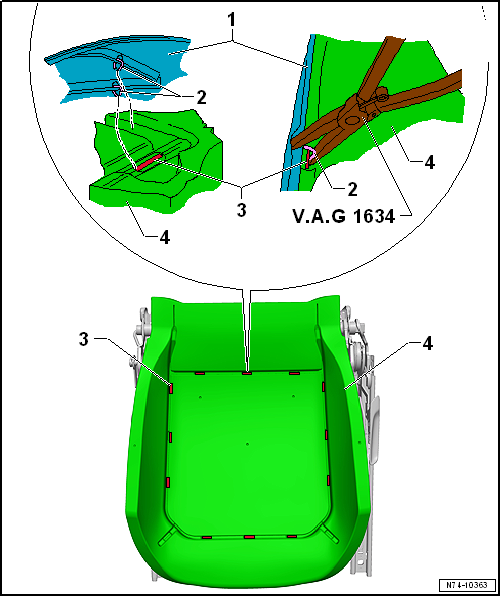

Pull seat cover -1- over padding
-4-. |
| – |
Secure seat cover -1- with upholstery
clips -2- in mountings
-3-. |
| – |
Use upholstery clip pliers -V.A.G 1634- for this. |
| – |
Ensure that seat cover -1- is free of
creases. |
| |
→ Chapter „Assembly overview - cover and padding for seat pan“ |
| |
→ Chapter „Assembly overview - front backrest“ |
| |
→ Chapter „Assembly overview - front seat“ |
|
|
|
