Volkswagen Golf Mk7 Service & Repair Manual: Paintwork structure of factory finish, cathodic dip primer
This page maps where cathodic dip primer (electrophoretic finish) is applied on the Volkswagen Golf Mk7 body shell — separate diagrams for 2-door and 4-door versions.
| Cathodic dip primer, 2-door version |
| - | Electrophoretic finish |

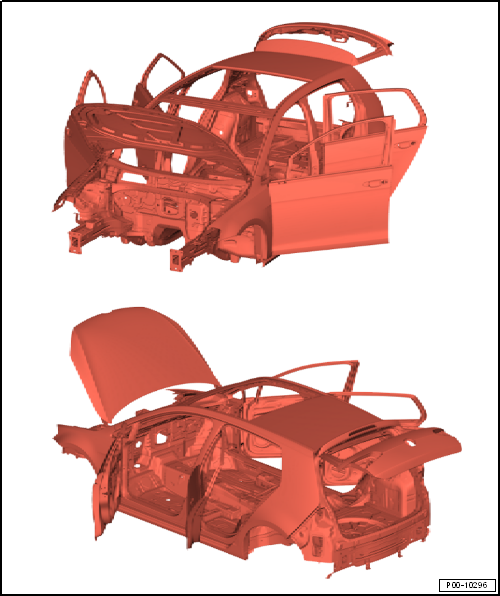

| Cathodic dip primer, 4-door |
| - | Electrophoretic finish |
Questions & answers
Paintwork structure of factory finish, cathodic dip primer — Volkswagen Golf Mk7
Where is the cathodic dip primer applied on the Golf Mk7?
The entire body shell receives electrophoretic cathodic dip primer. Diagrams show the 2-door and 4-door application areas.
