Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - automatic anti-dazzle interior mirror, with rain and light sensor -G397- and front camera for driver assist systems -R242-

This assembly overview covers the top-spec Volkswagen Golf Mk7 mirror with both sensor -G397- and front camera -R242-: front and rear covers, the bonded retaining plate, and the mirror itself.

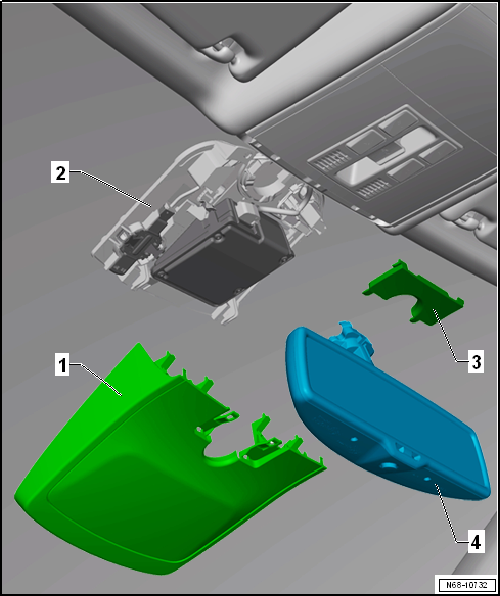

Assembly overview - automatic anti-dazzle interior mirror, with rain and light sensor -G397- and front camera for driver assist systems -R242-

1 -  Front cover
  • For mirror base
2 -  Retaining plate
  • For interior mirror
  • Bonded to windscreen
3 -  Rear cover
  • For mirror base
4 -  Interior mirror
  • Removing and installing → Chapter
