Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing baffle plate, LHD vehicles

This page covers removing the LHD Volkswagen Golf Mk7 baffle plate — remove the plastic bolt or plug depending on version, and always replace plugs with plastic bolts on reinstallation.

Removing

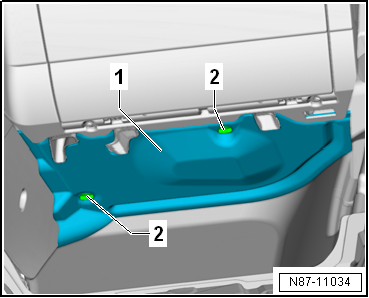

–  Depending on version, remove plastic bolt or plug -2- and remove baffle plate -1-. Installing –  Install in reverse order.   Note Always replace plugs with plastic bolts → Electronic Parts Catalogue. Specified torques: Bolts -2- → Item.

Questions & answers

Removing and installing baffle plate, LHD vehicles — Volkswagen Golf Mk7

How do I remove the Golf Mk7 baffle plate (LHD)?

Remove the plastic bolt or plug and pull the baffle plate out.

Removing and installing condensation drain (RHD)

Removing –  Remove right centre console trim in footwell → General body repairs, interior; Rep. gr.68. ...

Removing and installing baffle plate, RHD vehicles

Removing     –  Depending on version, remove plastic bolt or plug -2- and remove baffle plate -1 ...
