Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear seat backrest

This assembly overview covers the Volkswagen Golf Mk7 rear seat backrest: the frame, its lock, outer head restraint, and the rear centre belt guide.

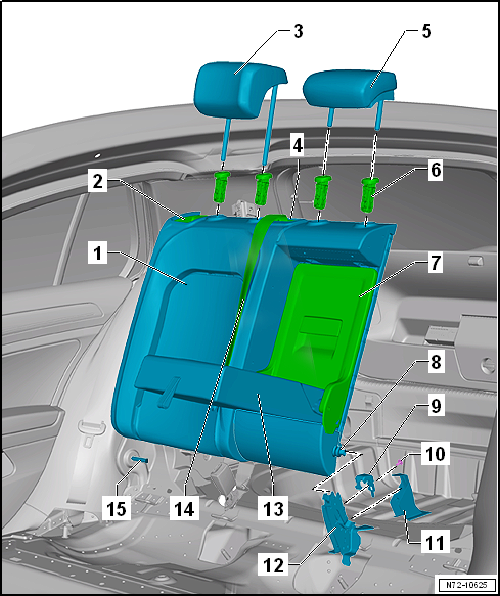

Assembly overview - rear seat backrest

1 -  Rear seat backrest
  • Allocation → Electronic Parts Catalogue
  • Removing and installing → Chapter
2 -  Lock
  • For rear seat backrest
  • Assembly overview → Chapter
3 -  Outer head restraint
  • Removing and installing → Chapter
4 -  Rear centre belt guide
  • Renew complete belt guide if damaged
  • Removing and installing → Chapter
5 -  Centre head restraint
  • Removing and installing → Chapter
6 -  Head restraint guide
  • Removing and installing → Chapter
7 -  Lid
  • For through-loading aperture
  • Allocation → Electronic Parts Catalogue
  • Removing and installing → Chapter
8 -  Mounting pin, inner
  • For rear seat backrest
  • 13.5 Nm
9 -  Catch
  • For centre mount
  • Removing and installing → Chapter
10 -  Bolt
  • 8 Nm
11 -  Cover
  • For centre mount
  • Only for saloon
  • Removing and installing → Chapter
12 -  Centre mount
  • Welded to underbody.
13 -  Centre armrest
  • Allocation → Electronic Parts Catalogue
  • Assembly overview → Chapter
  • Removing and installing → Chapter
14 -  Rear three-point seat belt
  • Removing and installing → Chapter
15 -  Outer support pin
  • Welded to body
