Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - radiator grille

This assembly overview covers the Volkswagen Golf Mk7 radiator grille, noting optical differences and version variants exist depending on model — cross-referenced to ETKA for correct allocation.

Note Depending on the respective model, optical differences and different versions must be taken into account; for allocation refer to → Electronic Parts Catalogue “ETKA”

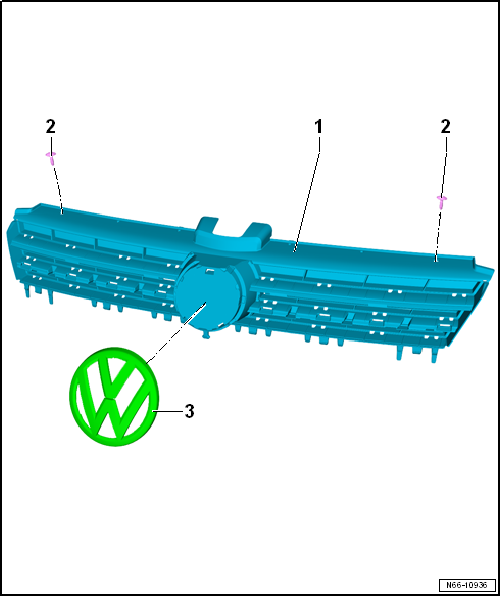

1 -	Radiator grille

• Removing and installing → Chapter.
• Different versions, allocation → Electronic Parts Catalogue “ETKA”

2 -

Bolt

• Qty. 2
• 2.0 Nm

3 -

Emblem

• Removing and installing → Chapter

Questions & answers

Assembly overview - radiator grille — Volkswagen Golf Mk7

What does the Golf Mk7 radiator grille assembly overview show?

The grille, mounting clips, bolts, VW badge, and variant-specific notes for R-Line/R and e-Golf models.

Radiator grille and front trim

...

Assembly overview - flap for charging bay

1 -  Flap for charging bay Removing and installing 2 -  Bolt For actuator 2 Nm Qty. 3 3 -  Actua ...
