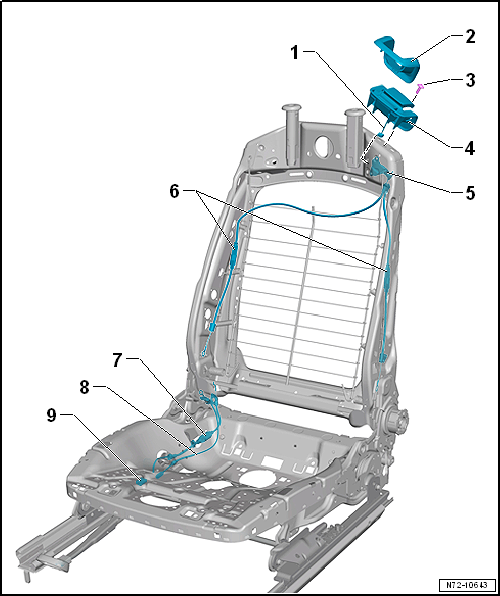

| 1 - |
Connecting Bowden cable |
- Between backrest release mechanism and mounting bracket for backrest
release mechanism
- Removing and installing
→ Chapter
| 2 - |
Trim for backrest release mechanism |
- Removing and installing
→ Chapter
| 4 - |
Backrest release mechanism |
- Removing and installing
→ Chapter
| 5 - |
Mounting bracket for backrest release mechanism |
- Riveted to backrest frame
- Removing and installing
→ Chapter
| 6 - |
Bowden cable for backrest release mechanism |
- With Bowden cable adjuster on each side
- Removing and installing
→ Chapter
- Adjusting
→ Chapter
| 7 - |
Bowden cable A for entry assistance |
- With one Bowden cable adjuster
- Removing and installing
→ Chapter
- Adjusting
→ Chapter
| 8 - |
Bowden cable B for entry assistance |
- Removing and installing
→ Chapter
- Removing and installing
→ Chapter
