Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing front side window

WARNING: always wear safety goggles and leather gloves for this job. Using wire reel -VAS 6452/1-, this page covers cutting out the Volkswagen Golf Mk7 front side window with a cutting cord after removing any fitted trim strip.

  WARNING
Always wear safety goggles and leather gloves.
  Note
To cut out the front side window, use the wire reel -VAS 6452/1-.

Removing and installing front side window

–  Pull trim strip (if fitted) out of seal.
Protect surrounding parts against damage.

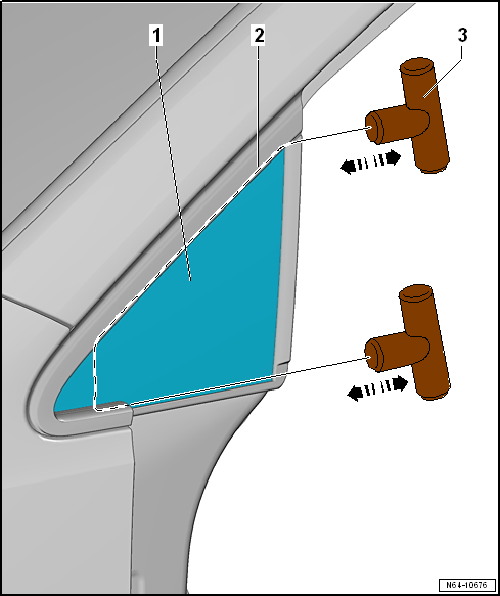

–  Place cutting cord -2- around front side window -1-.
–  Secure ends of cutting cord with pull handles -V.A.G 1351/1--3-.
–  Cut through adhesive bead with “sawing” motions -arrows- of pull handles -V.A.G 1351/1-.

Installing
–  Preparing old undamaged window for glazing → Chapter.
–  Preparing new window for glazing → Chapter.
–  Preparing body flange for glazing → Chapter.
–  Installation instructions → Chapter
–  Minimum curing period → Chapter
